Microchip PIC16F684-I/ST PIC16F684-I/ST 8 Bit MCU Flash PIC16 Family PIC16F6XX Series Microcontrollers 20 MHz 3.5 KB 14 Pins

The PIC16F684-I/ST is a mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 128bytes of data memory size, 12 general-purpose I/O pins, two comparators and 8-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 5.5V.

• 35 (14-bit wide) easy instructions to learn
• 8 level hardware stack
• 1 (9-bit) file select register
• Hardware interrupt handling
• 32kHz to 8MHz internal oscillator
• 256bytes of EEPROM data memory
• Brown-out reset (BOR)
• Power on reset (POR)
• Two 8-bit digital timers
• One 16-bit digital timer
• 1x Enhanced Capture/Compare/PWM (ECCP)
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)
• MPLAB® ICD 3 / PICKit 3 programming support

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16F684-I/ST
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN

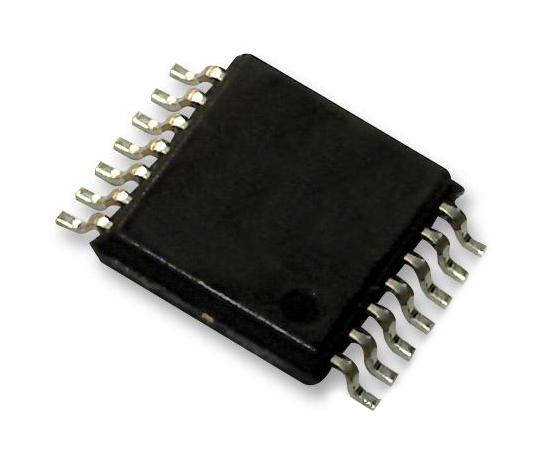

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
