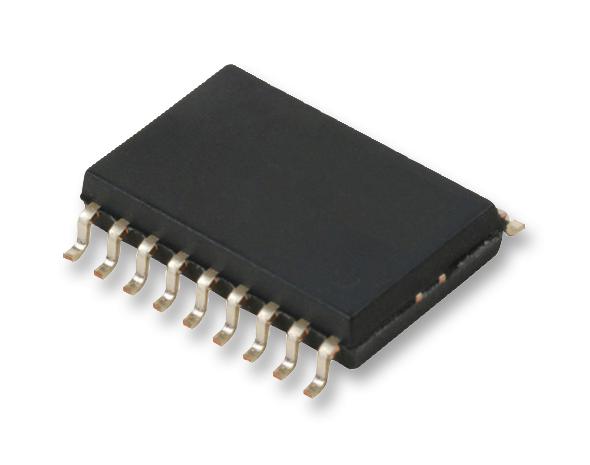

Microchip PIC16F628A-I/SO 8 Bit MCU Flash PIC16 Family PIC16F6XX Series Microcontrollers 20 MHz 3.5 KB 18 Pins Soic

The PIC16F628A-I/SO is a 8-bit flash-based CMOS Microcontrollers with nanoWatt technology. All PIC® microcontrollers employ an advanced RISC architecture. The PIC16F628A have enhanced core features, an eight-level deep stack and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with the separate 8-bit wide data. The two-stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches (which require two cycles). A total of 35 instructions (reduced instruction set) are available, complemented by a large register set. This device has integrated features to reduce external components, thus reducing system cost, enhancing system reliability and reducing power consumption.

• Low voltage programming
• Low speed clock mode
• Programmable BOR
• 4MHz Internal oscillator
• Programmable VREF
• 128-byte EEPROM
• Interrupt capability
• 8-level Deep hardware stack
• Direct, indirect and relative addressing modes
• Power-saving sleep mode
• Multiplexed master clear/input pin
• Watchdog timer with independent oscillator for reliable operation
• Power-up timer and oscillator start-up timer
• High current sink/source for direct LED drive

Applications

Automotive, Industrial, Consumer Electronics
