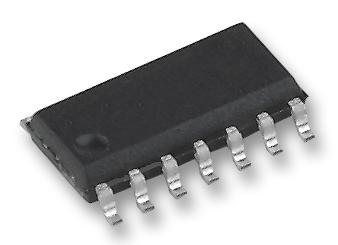

Microchip PIC16F505-I/SL PIC16F505-I/SL 8 Bit MCU Flash PIC16 Family PIC16F5XX Series Microcontrollers 20 MHz 1.5 KB 14 Pins

The PIC16F505-I/SL is a 8-bit fully-static Flash-based CMOS Microcontroller for personal care appliances and security systems to low-power remote transmitters/receivers. They employ a RISC architecture with only 33 single-word/single-cycle instructions. All instructions are single cycle (200µs) except for program branches, which take two cycles. The PIC16F505 device delivers performance an order of magnitude higher than their competitors in the same price category. The easy to use and easy to remember instruction set reduces development time significantly. The PIC16F505 products are equipped with special features that reduce system cost and power requirements. The Power-on Reset (POR) and Device Reset Timer (DRT) eliminate the need for external reset circuitry. The PIC16F505 device is available in the flash programmable version, which is suitable for production in any volume.

• Precision 4MHz internal oscillator
• Baseline core with 33 instructions and 2 stack levels
• All single-cycle instructions except for program branches which are two cycles
• 25mA Source/sink current I/O
• Low power (100nA) sleep current
• One 8-bit timer (TMR0)
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢) capability
• In-Circuit Debugging support
• Programmable code protection

Applications

Security, Consumer Electronics, Automotive

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16F505-I/SL
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
