Microchip PIC16F1827-I/SO 8 Bit MCU Flash PIC16 Family PIC16F18XX Series Microcontrollers 32 MHz 7 KB 18 Pins Soic

The PIC16F1827-I/SO is a 8-bit 18-pin Flash Microcontroller with nanoWatt XLP technology. This family of device contains an enhanced mid-range 8-bit CPU core. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has overflow and underflow reset capability. The microcontroller with direct, indirect and relative addressing modes. Two file select registers (FSRs) provides the ability to read program and data memory. The enhanced mid-range core has a 15-bit program counter capable of addressing a 32k x 14 program memory space. Accessing a location above these boundaries will cause a wrap-around within the implemented memory space. The Reset vector is at 0000h and the interrupt vector is at 0004h.

• Flash program memory with self read/write capability
• Integrated capacitive mTouch sensing module
• Data signal modulator module
• MI²C, SPI, EUSART with auto baud
• 2 ECCP and 2 CCP (enhanced/capture compare PWM)
• Comparators with selectable voltage reference
• 12-channel 10-bit ADC with voltage reference
• 25mA Source/sink current I/O
• Four 8-bit timers (TMR0/TMR2/TMR4/TMR6)
• One 16-bit Timer (TMR1)
• Extended watchdog timer (EWDT)
• Enhanced power-on/off-reset
• Brown-out reset (BOR)
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)
• On board in-circuit debug
• Self-programmable under software control
• Power-on reset (POR), power-up timer (PWRT) and oscillator start-up timer (OST)
• Programmable brown-out reset (BOR)
• Programmable code protection
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢) via two pins

Applications

Industrial, Computers & Computer Peripherals, Automotive

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16F1827-I/SO
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN

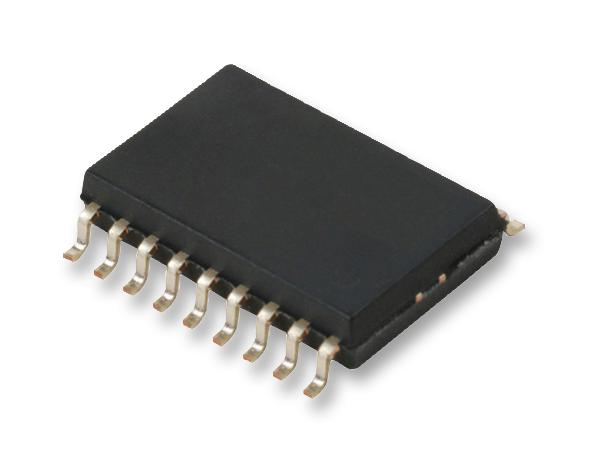

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
