Microchip PIC16F1825-E/ML PIC16F1825-E/ML 8 Bit MCU Flash PIC16 Family PIC16F18XX Series Microcontrollers 32 MHz 14 KB 16 Pins

The PIC16F1825-E/ML is an enhanced mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 14kB of addressable program memory size, 1024bytes of data memory size, 12 general-purpose I/O pins, two comparators and 8-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 32MHz with wide operating voltage of 1.8 to 5.5V.

• 49 (14-bit wide) easy instructions to learn
• 16 level hardware stack
• 2 (16-bit) file select registers
• Hardware interrupt handling with content save
• Flash program memory with self read/write capability
• Internal 32MHz oscillator
• Integrated capacitive mTouch sensing module
• Data signal modulator for generation of custom bit streams
• CVREF can be used as 5-bit DAC
• MI2C, SPI, EUSART w/auto baud
• 2 ECCP & 2 CCP (Enhanced/Capture Compare PWM)
• Four 8-bit timers
• One 16-bit timer
• Extended watchdog timer (EWDT)
• Enhanced power-On/Off-Reset
• Brown-out reset (BOR)
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)
• On board in-circuit debug
• 256bytes of EEPROM data memory

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16F1825-E/ML
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN

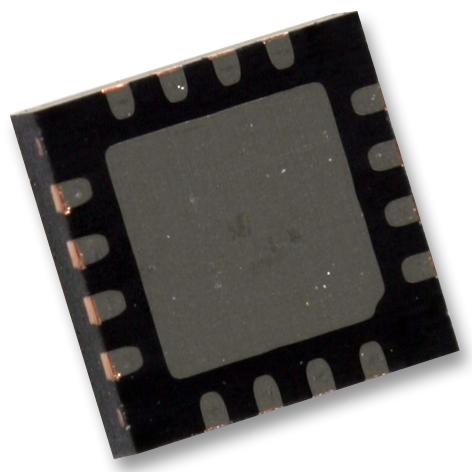

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
