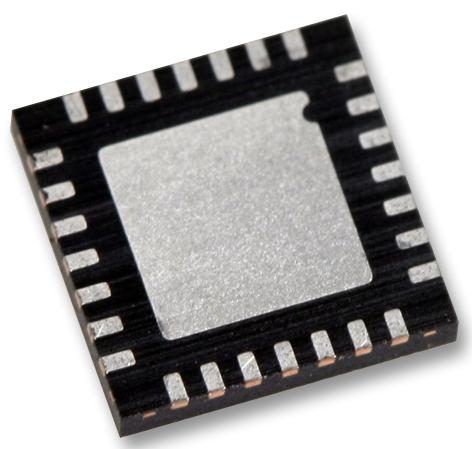

PIC16F18056-I/STX is a microcontroller which has a suite of digital and analogue peripherals that enable cost-sensitive sensor and real-time control applications. The family includes a 10-bit analogue-to-digital converter with computation (ADCC), automated capacitive voltage divider (CVD) techniques for advanced capacitive touch sensing, an 8bit digital-to-analogue converter (DAC) module, and many more waveform control and communication peripherals. This small form factor, feature-rich device is well suited for low-cost sensor and control applications.
- C compiler-optimized RISC architecture, 16-level deep hardware stack
- Operating speed: DC - 32MHz clock input, 125ns minimum instruction time
- Programmable code protection and write protection, device information area (DIA) stores
- Reduce device power consumption, reduce system electrical noise while performing ADC conversions
- 16-bit resolution for capture/compare modes, 10-bit resolution for pulse-width modulator mode
- Multiple signal sources, programmable dead band, fault-shutdown input
- Generates true linear frequency control and increased frequency resolution
- Inter-integrated circuit (I2C) mode, 7/10-bit addressing modes
- Zero-cross detect (ZCD), detect when AC signal on pin crosses ground
- Operating voltage rating range from 1.8V to 5.5V
Product details
| Product Range:
PIC16 Family PIC16F180x6 Series Microcontrollers
|
| Device Core:
PIC16
|
| Operating Frequency Max:
32MHz
|
| Program Memory Size:
28KB
|
| No. of Pins:
28Pins
|
| IC Case / Package:
VQFN
|
| No. of I/O's:
25I/O's
|
| Interfaces:
EUSART, I2C, SPI
|
| RAM Memory Size:
2KB
|
| ADC Channels:
24Channels
|
| ADC Resolution:
10Bit
|
| Supply Voltage Min:
1.8V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Through Hole
|
| MCU Family:
PIC16
|
| MCU Series:
PIC16F180xx
|
| Qualification:
-
|
Other details
| Brand |
MICROCHIP |
| Part Number |
PIC16F18056-I/STX |
| Quantity |
Each |
