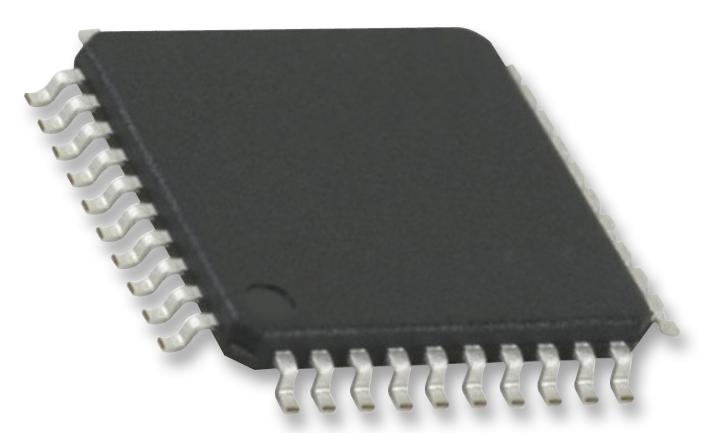

Microchip PIC16F1519-I/PT 8 Bit MCU Flash PIC16 Family PIC16F15xx Series Microcontrollers 20 MHz 28 KB 44 Pins Tqfp

The PIC16F1519-I/PT is a 8-bit 44-pin Flash Microcontroller with XLP technology. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has overflow and underflow reset capability. The microcontroller with direct, indirect and relative addressing modes. Two file select registers (FSRs) provides the ability to read program and data memory. This device has a 128-byte section of high-endurance program flash memory (PFM) in lieu of data EEPROM. This area is especially well suited for non-volatile data storage that is expected to be updated frequently over the life of the end product.

• Flash program memory with self read/write capability
• High endurance flash memory (HEF) - 128-byte of non-volatile data storage
• Internal 16MHz oscillator
• MI²C, SPI, EUSART with auto baud
• Two CCP (capture compare PWM) module
• 28-channel 10-bit ADC with voltage reference
• 25mA Source/sink current I/O
• Two 8-bit timer (TMR0/TMR2)
• One 16-bit Timer (TMR1)
• Extended watchdog timer (WDT)
• Enhanced power-on/off-reset
• Programmable ultra low-power brown-out reset (ULPBOR)
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)
• In-Circuit debug

Applications

Industrial, Computers & Computer Peripherals, Power Management, Automotive

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16F1519-I/PT
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
