Microchip PIC16F1459-I/SS 8 Bit MCU Flash PIC16 Family PIC16F14xx Series Microcontrollers 48 MHz 14 KB 20 Pins Ssop

The PIC16F1459-I/SS is a 20-pin 8-bit Flash USB Microcontroller with XLP technology. This family of device contains an enhanced mid-range 8-bit CPU core. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has overflow and underflow reset capability. The microcontroller with direct, indirect and relative addressing modes. Two file select registers (FSRs) provides the ability to read program and data memory.

• Enhanced mid-range core with 49 instruction, 16 stack levels
• Flash program memory with self read/write capability
• High endurance flash memory (HEF)
• 128-byte of non-volatile data storage
• Internal 48MHz oscillator
• Universal serial bus 2.0 module with clock recovery from USB host
• 2x standalone PWM modules
• Complementary waveform generator (CWG) module
• Integrated temperature indicator module
• 10-channel 10-bit ADC with voltage reference
• 2 Analogue comparators
• 5-bit Digital to Analogue Converter (DAC)
• MI²C/SPI module
• Enhanced addressable USART module
• 25mA Source/sink current I/O
• 2x 8-bit Timers (TMR0/TMR2)
• 1x 16-bit Timer (TMR1)
• Extended watchdog timer (WDT)
• Enhanced power-on/off-reset
• Low-power brown-out reset (LPBOR)

Applications

Industrial

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16F1459-I/SS
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN

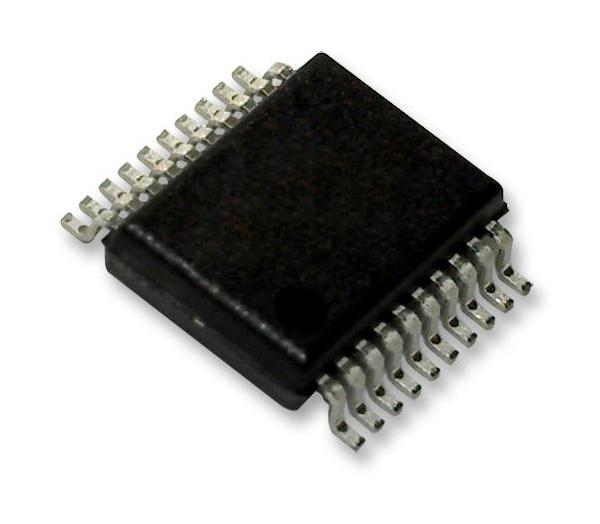

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
