Microchip PIC16C63A-20I/SP PIC16C63A-20I/SP 8 Bit MCU One Time Programmable PIC16 Family PIC16C6x Series Microcontrollers 20 MHz

The PIC16C63A-20I/SP is a PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS one time programmable (OTP) based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 7kB of addressable program memory size, 192bytes of data memory size and 22 general-purpose I/O pins. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2.5 to 6V.

• 35 (14-bit wide) easy instructions to learn
• 8 level hardware stack
• Power-on reset (POR)
• Brown-out reset (BOR)
• Power-up timer (PWRT)
• Oscillator start-up timer (OST)
• Programmable code protection
• Watchdog timer (WDT)
• One 8-bit timer
• Two 16-bit timer
• 2x CCP (Capture/Compare/PWM)
• Power-saving sleep mode
• Interrupt capability

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16C63A-20I/SP
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN

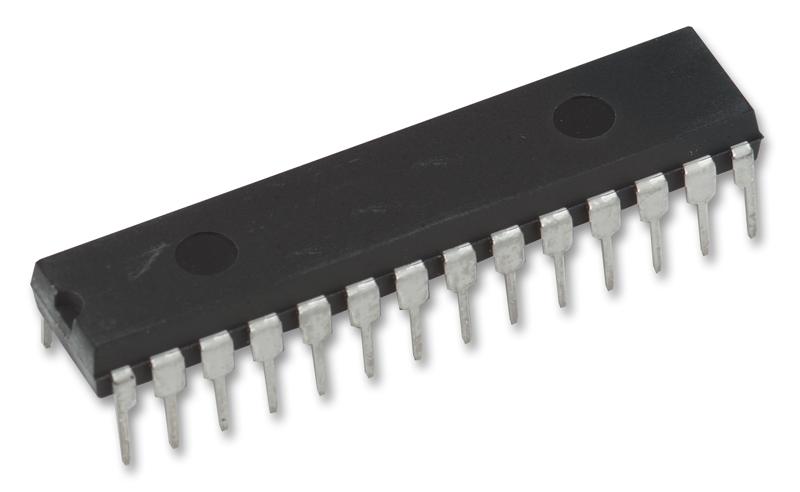

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
