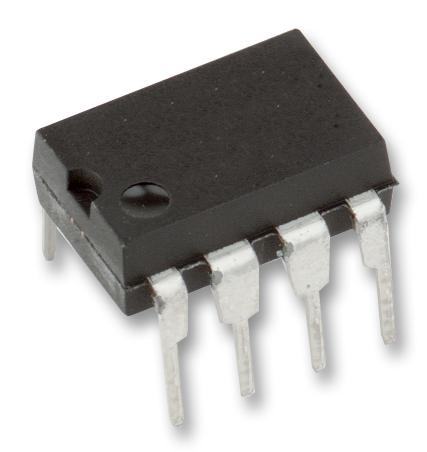

Microchip PIC12F683-E/P 8 Bit MCU Flash PIC12 Family PIC12F6xx Series Microcontrollers 20 MHz 3.5 KB Pins DIP

The PIC12F683-E/P is a mid-range PIC12 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 128bytes of data memory size, 6 general-purpose I/O pins, one comparator and 4-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 20MHz wide operating voltage of 2 to 5.5V.

• 35 (14-bit wide) easy instructions to learn
• 8 level hardware stack
• 1 (9-bit) file select register
• Hardware interrupt handling
• Brown-out reset (BOR)
• Power on reset (POR)
• 32kHz to 8MHz internal oscillator
• Watch dog timer (WDT)
• Two 8-bit digital timers
• One 16-bit digital timer
• 1x Capture/Compare/PWM (CCP)
• 4x Capacitive touch channels
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)
• 256bytes of EEPROM data memory

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC12F683-E/P
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
