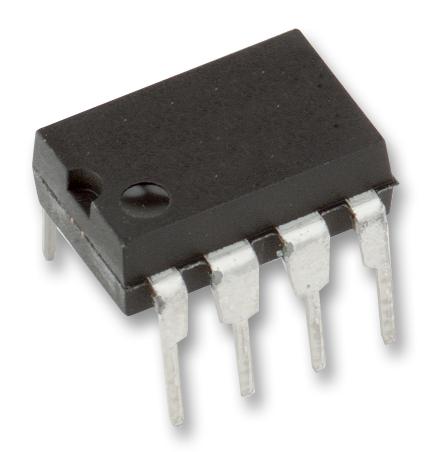

Microchip PIC12F615-I/P 8 Bit MCU Flash PIC12 Family PIC12F6xx Series Microcontrollers 20 MHz 1.75 KB Pins DIP

The PIC12F615-I/P is a 8-bit 8-pin Flash-based CMOS Microcontroller. It has a 13-bit program counter capable of addressing an 8k x 14 program memory space. Only the first 1k x 14 (0000h-03FFh) is physically implemented. Accessing a location above these boundaries will cause a wrap-around within the first 1k x 14 space and within the first 2k x 14 space for the PIC12F617 device. The reset vector is at 0000h and the interrupt vector is at 0004h.

• Flash program memory
• Internal 4/8MHz oscillator
• Comparator with hysteresis (user configurable)
• Mid-range core with 35 instruction, 8 stack levels
• 25mA Source/sink current I/O
• Two 8-bit timer (TMR0/TMR2)
• One 16-bit Timer (TMR1)
• Watchdog timer (WDT)
• Enhanced power-on/off-reset
• Brown-out reset (BOR)
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)
• Enhanced capture compare PWM (pulse width modulation)

Applications

Computers & Computer Peripherals, Automotive

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
