Microchip PIC12F1822-I/P PIC12F1822-I/P 8 Bit MCU Flash PIC12 Family PIC12F18xx Series Microcontrollers 32 MHz 3.5 KB Pins

The PIC12F1822-I/P is a 8-bit 8-pin Flash Microcontroller with XLP technology. This family of device contains an enhanced mid-range 8-bit CPU core. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has overflow and underflow reset capability. the microcontroller with direct, indirect and relative addressing modes. Two file select registers (FSRs) provides the ability to read program and data memory. The enhanced mid-range core has a 15-bit program counter capable of addressing a 32k x 14 program memory space. Accessing a location above these boundaries will cause a wrap-around within the implemented memory space.

• Enhanced mid-range core with 49 instruction, 16 stack levels
• Flash program memory with self read/write capability
• Integrated capacitive mTouch sensing module
• Data signal modulator module
• MI²C, SPI, EUSART with auto baud
• ECCP (Enhanced/Capture Compare PWM) module
• Comparator with selectable voltage reference
• 4-channel 10-bit ADC with voltage reference
• 25mA Source/sink current I/O
• Two 8-bit timer (TMR0/TMR2)
• One 16-bit Timer (TMR1)
• Extended watchdog timer (EWDT)
• Enhanced power-on/off-reset
• Brown-out reset (BOR)
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)
• On board in-circuit debug

Applications

Industrial, Computers & Computer Peripherals, Automotive

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC12F1822-I/P
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN

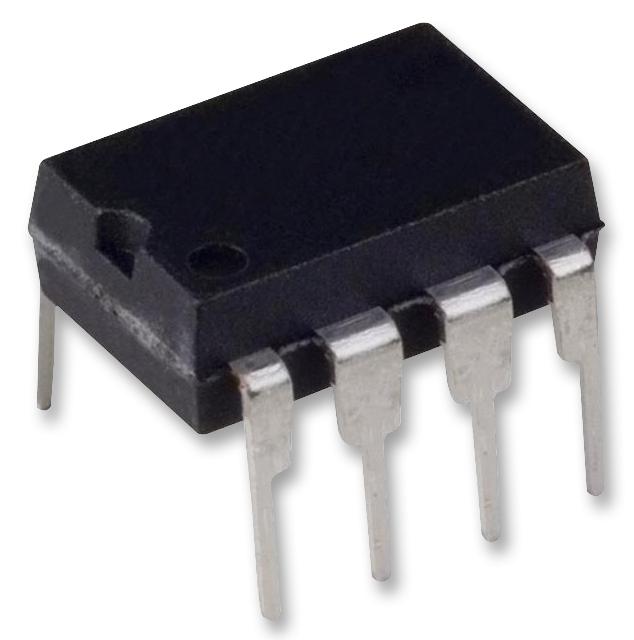

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
