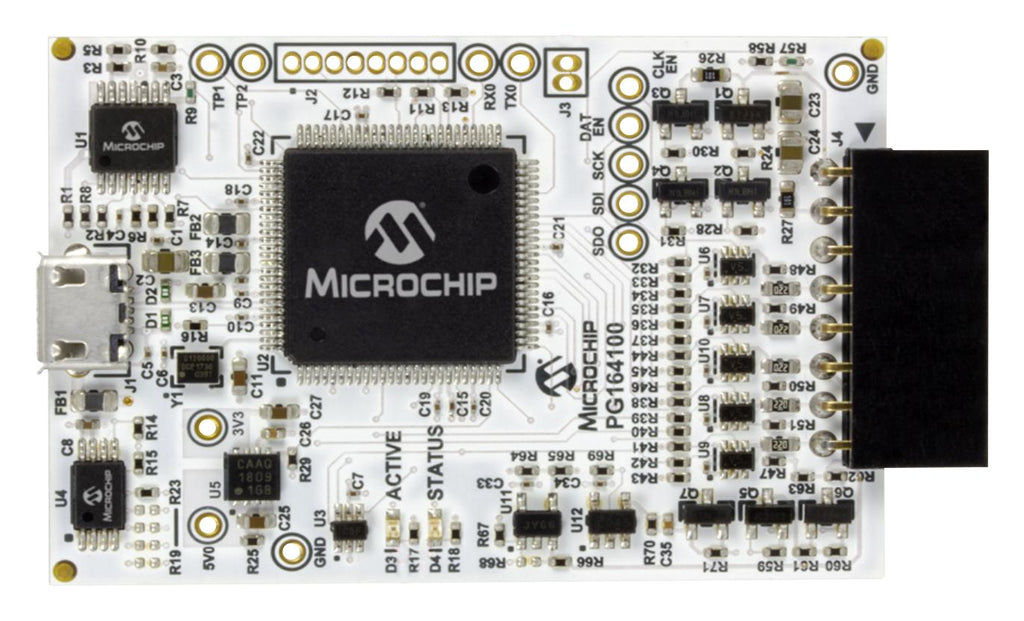

The MPLAB Snap In-Circuit Debugger allows fast and easy debugging and programming using the powerful graphical user inetrface of MPLAB X IDE or MPLAB IDE. The debugger works with Microchip PIC, dsPIC, Flash, AVR or DSC devices. It will also work with 32-bit SAM, CEC and PIC32 devices.The MPLAB Snap connects to the computer using a high-speed USB interface and connects to the target via a Microchip debug 8-pin Single In-Line (SIL) connector. The SIL connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming (ICSP).
- Connects to computer via high-speed USB 2.0
- An 8-Pin SIL programming connector and the option to use various interfaces
- Programs devices using MPLAB X IDE or MPLAB IDE
- Supports 4-wire JTAG and Serial Wire Debug
- Backwards compatibility with 2-wire systems
Other details
| Brand |
MICROCHIP |
| Part Number |
PG164100 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
