This is a

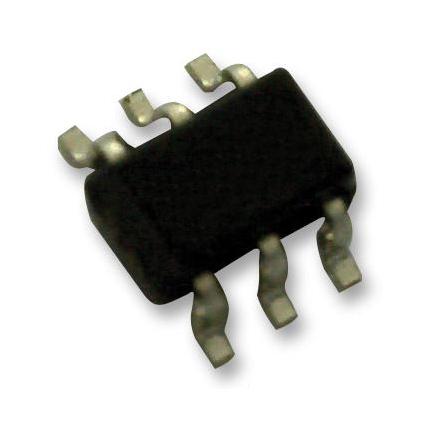

MIC94092YC6-TR Power Load Distribution Switch , High Side, Active High, 1 Output, 5.5 V, 1.2 A, 0.03 ohm, SC-70-6 product from MICROCHIP with the model number MIC94092YC6-TR
Product details
| Power Load Switch Type |
High Side |
| Input Voltage |
5.5V |
| Current Limit |
1.2A |
| On State Resistance |
0.13ohm |
| Distribution Switch Case Style |
SC-70 |
| No. of Pins |
6Pins |
| Thermal Protection |
Yes |
| On / Enable Input Polarity |
Active High |
| No. of Outputs |
1Outputs |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
| MSL |
MSL 3 - 168 hours |
Other details
| Brand |
MICROCHIP |
| Part Number |
MIC94092YC6-TR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
