MIC94064YC6-TR is a high side power switch. It is a high-side load switch designed for operation between 1.7V to 5.5V. It contain a low on-resistance P-channel MOSFET that supports over 2A of continuous current. It provides a slew rate controlled soft start turn-on of 115µs (typical) to prevent in-rush current from glitching supply rails. It has an active load discharge circuit which insures capacitive loads retain no charge when the main switch is in OFF state. This power switch is widely used in application such as cellular phones, PDAs, MP3 players, digital cameras, portable instrumentation, battery switch-over circuits, level translator etc.
- Operating junction temperature range is -40°C to +125°C
- Low 2µA quiescent current
- Built-in level shift for control logic can be operated by 1.5V logic
- Soft-start is 115µs
- Micro-power shutdown is <1µA
- Load discharge circuit
- Packaging style is SC-70-6
Other details
| Brand |
MICROCHIP |
| Part Number |
MIC94064YC6-TR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

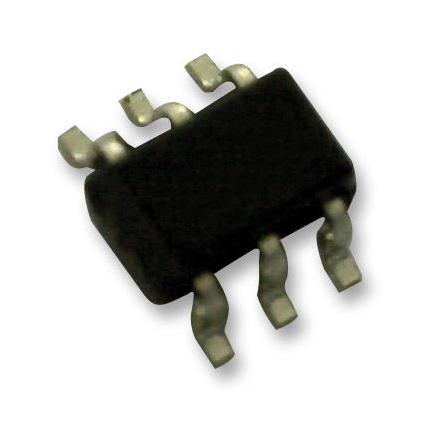

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
