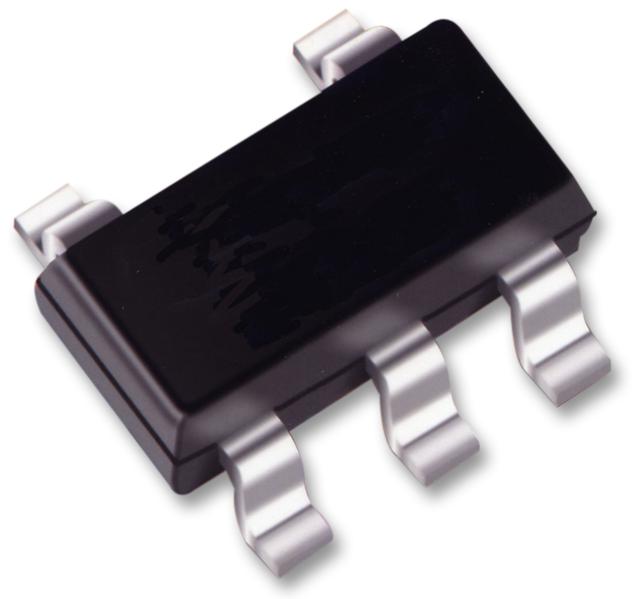

Microchip MIC5504-3.3YM5-TR MIC5504-3.3YM5-TR Fixed LDO Voltage Regulator 2.5V to 5.5V 160mV Dropout 3.3Vout 300mAout SOT-23-5

The MIC5504-3.3YM5 TR is a fixed output, single low dropout (LDO) voltage regulator in 5 pin SOT-23 package. This advanced general purpose LDO provides high performance and suitable for battery powered applications. The MIC5504 includes an auto discharge feature on output that is activated when enable pin is low. It has an internal pull down resistor on enable pin that disables output when the enable pin is left floating. This is ideal for applications where control signal is floating during processor boot up. The MIC5504 can also be put into zero off mode current state drawing virtually no current when disabled.

• Fixed output voltage of 3.3V
• Input voltage range from 2.5V to 5.5V
• 300mA output current
• High output accuracy of ±2%
• Low quiescent current of 38µA
• Stable with 1µF ceramic output capacitors
• Low dropout voltage of 160mV at 300mA
• Thermal shutdown and current limiting protection
• Operating junction temperature range from -40°C to 125°C

Applications

Power Management, Consumer Electronics, Portable Devices, Medical

Warnings ESD (electrostatic discharge) sensitive device. Proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	MIC5504-3.3YM5-TR
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
