MIC5365-2.85YC5-TR is a high performance single 150mA LDO regulator. It includes auto discharge feature that is activated when the enable pin is low. It is capable of sourcing 150mA output current and offers high PSRR making it an ideal for any portable electronic application. It is widely used in application such as mobile phones, digital cameras, GPS, PDAs, PMP, handhelds, portable electronics etc.
- Supply voltage range is 2.5V to 5.5V
- Operating junction temperature range is -40°C to +125°C
- Output voltage range is 2.85V

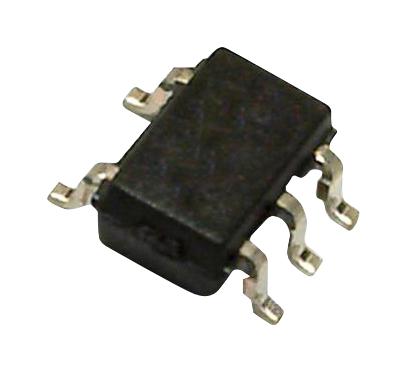

- Packaging style is SC-70-5
- Excellent load and line transient response
- Low quiescent current is 29µA
- Thermal shutdown
- Current limit protection
Other details
| Brand |
MICROCHIP |
| Part Number |
MIC5365-2.85YC5-TR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
