| ₹ 200.13 includes GST and import duties. | |
| B2B customers can avail ₹ 30.52 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

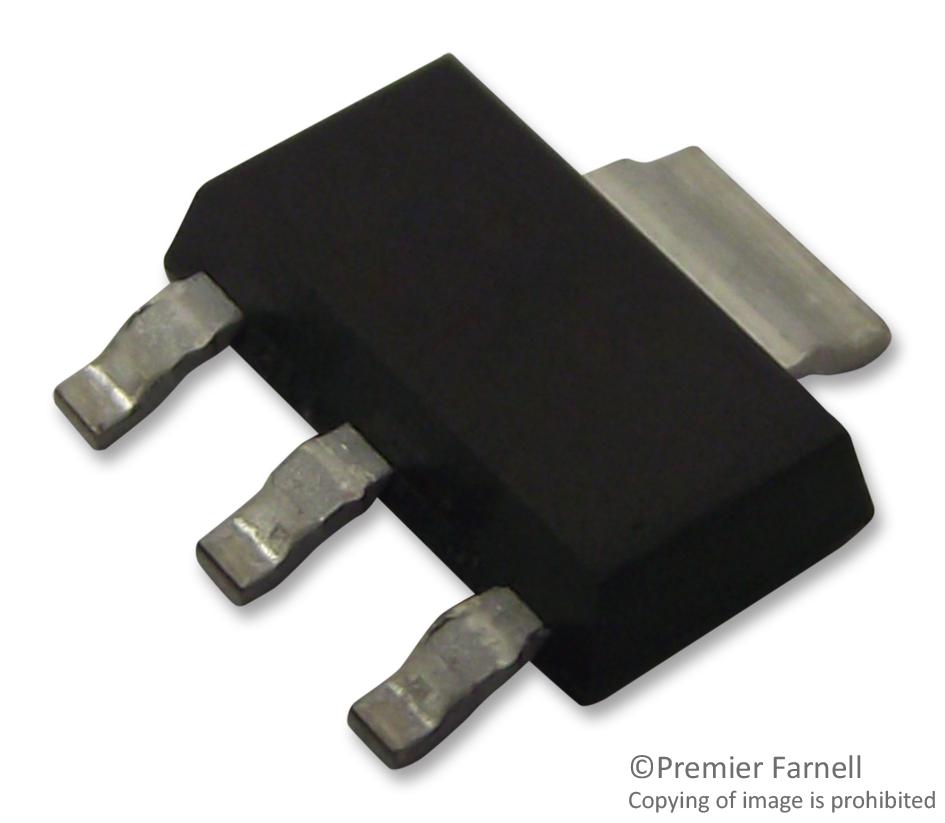

This is a Fixed LDO Voltage Regulator, 2.5V to 16V, 350mV Drop, 5V/500mA Out, SOT-223-3 product from MICROCHIP with the model number MIC5209-5.0YS-TR
Product details
| Output Type | Fixed |
| Input Voltage Min | 2.5V |
| Input Voltage Max | 16V |
| Fixed Output Voltage Nom. | 5V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 500mA |
| Dropout Voltage Vdo | 350mV |
| LDO Regulator Case Style | SOT-223 |
| No. of Pins | 3Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Product Range | 5V 500mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | Yes |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | MIC5209-5.0YS-TR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 196.13 |
| 3-5 | ₹ 194.13 |
| 5-10 | ₹ 190.12 |
| 10+ | ₹ 186.12 |
Bulk discount will be automatically applied during checkout based on quantity.
