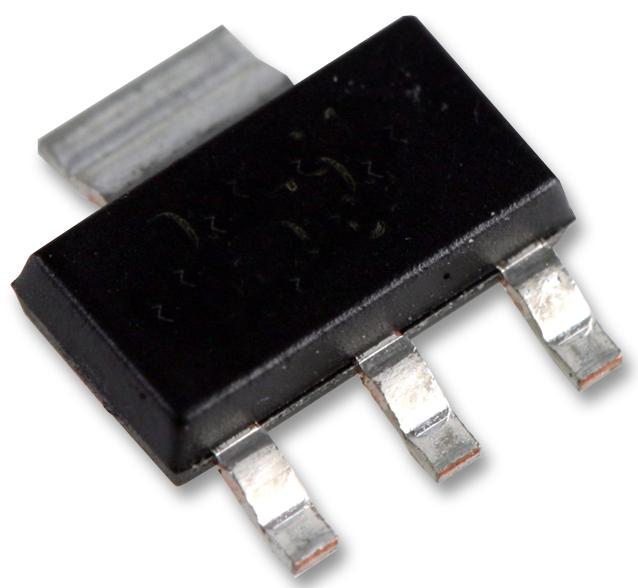

Microchip MIC5209-3.3YS MIC5209-3.3YS Fixed LDO Voltage Regulator 2.5V to 16V 350mV Dropout 3.3Vout 500mAout SOT-223-3

The MIC5209-3.3YS is an efficient linear Voltage Regulator with very low dropout voltage, typically 10mV at light loads and less than 500mV at full load, with better than 1% output voltage accuracy. Designed especially for handheld and battery-powered devices, the MIC5209 features low ground current to help prolong battery life. An enable/shutdown pin on SO-8 and TO-263-5 versions can further improve battery life with near-zero shutdown current. Key features include reversed-battery protection, current limiting, over temperature shutdown, ultra-low-noise capability (SO-8 and TO-263-5 versions) and availability in thermally efficient packaging. This is available in adjustable or fixed output voltages.

• 1.8 to 15V Output voltage range
• Meets Intel® slot 1 and slot 2 requirements
• Guaranteed 500mA output over full operating temperature range
• Low 500mV maximum dropout voltage at full load
• Extremely tight load and line regulation
• Low temperature coefficient
• Current and thermal limiting
• Reversed battery protection
• No-load stability
• 1% Output accuracy

Applications

Industrial, Computers & Computer Peripherals, Consumer Electronics, Power Management

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	MIC5209-3.3YS
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
