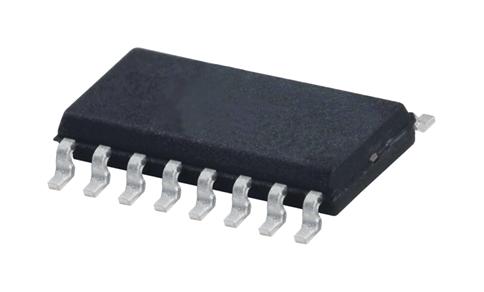

MICROCHIP MIC4469YWM MOSFET Driver 4 outputs, Low Side, 4.5V-18V supply, 1.2A and 5 ohm output, SOIC-16

The MIC4469YWM is a 4-output CMOS Buffer/Driver with an expansion from the earlier single and dual-output driver, to which it is functionally closely related. The driver has been equipped with a 2-input logic gate for added flexibility. Although primarily intended for driving power MOSFETs and similar highly capacitive loads, this driver is equally well suited to driving any other load, which requires a high-efficiency, low-impedance driver capable of high peak currents, rail-to-rail voltage swings and fast switching times. For example, heavily loaded clock lines, coaxial cables and piezoelectric transducers can all be driven easily with MIC446X series driver. The MIC446X series driver is built using a BCD process. It will not latch under any conditions within its power and voltage ratings. It is not subject to damage when up to 5V of noise spiking occurs on the ground line. It can accept up to half an amp of inductive kickback current into its outputs without damage or logic upset.

• Built using reliable, low power CMOS processes
• 25ns Symmetrical rise and fall times
• 75ns Short, equal delay times
• 6pF Typical Low equivalent input capacitance
• ESD protected

Applications

Motor Drive & Control, Communications & Networking

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
