Description
The MIC29302AWU is a 3A fast-response LDO Regulator with a Micrel's proprietary Super βeta PNP® process with a PNP pass element. The 3A LDO regulator features 450mV (full load) dropout voltage and very low ground current. Designed for high-current loads, this devices also find applications in lower current, low dropout-critical systems, where their dropout voltage and ground current values are important attributes. Along with a total accuracy of ±2% (over-temperature, line and load regulation) the regulator features very-fast transient recovery from input voltage surges and output load current changes.
- High current capability
- Low dropout voltage
- Low ground current
- Accurate 1% guaranteed tolerance
- Extremely fast transient response
- Zero-current shutdown mode
- Error flag signals output out-of-regulation
Applications
Power Management, Computers & Computer Peripherals, Automotive, Portable Devices
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Output Type: Adjustable |
| Input Voltage Min: 3V |
| Input Voltage Max: 16V |
| Output Voltage Nom: - |
| Output Voltage Min: 1.24V |
| Output Voltage Max: 15V |
| Dropout Voltage Typ @ Current: 450mV |

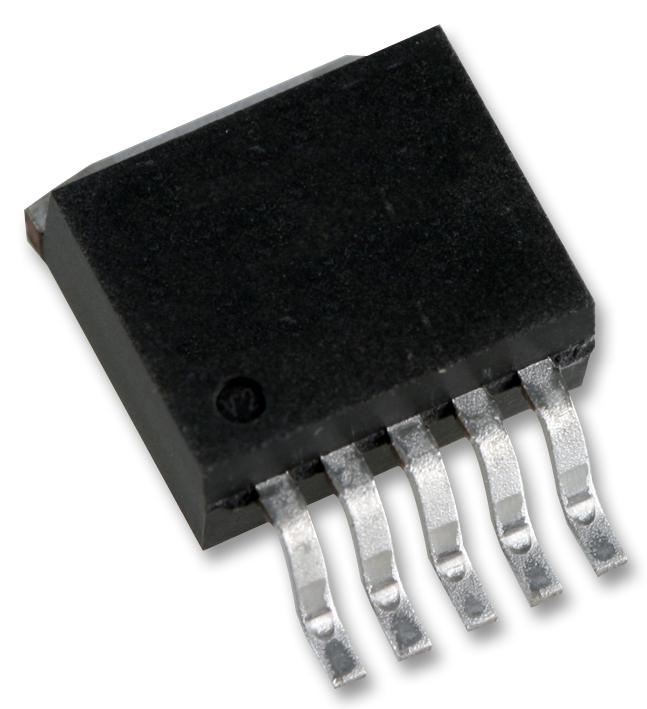

| IC Case / Package: TO-263 (D2PAK) |
| No. of Pins: 5Pins |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| Product Range: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | MICROCHIP |
| Part Number | MIC29302AWU |
| Quantity | Each |
| Technical Data Sheet EN |  |
