| ₹ 607.08 includes GST and import duties. | |
| B2B customers can avail ₹ 92.58 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

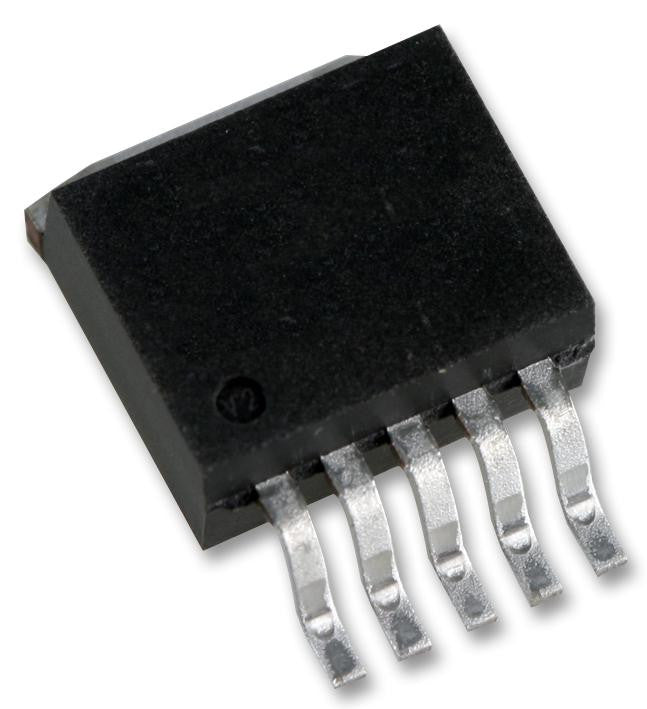

This is a Fixed LDO Voltage Regulator, 2.25V to 26V, 350mV Dropout, 3.3Vout, 1.5Aout, TO-263-5 product from MICROCHIP with the model number MIC29151-3.3WU
Product details
| Input Voltage Max | 26V |
| Fixed Output Voltage Nom. | 3.3V |
| Operating Temperature Min | -40°C |
| Output Current | 1.5A |
| Adjustable Output Voltage Max | - |
| Operating Temperature Max | 125°C |
| No. of Pins | 5Pins |
| Adjustable Output Voltage Min | - |
| Output Type | Fixed |
| Input Voltage Min | 2.25V |
| Product Range | 3.3V 1.5A LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| LDO Regulator Case Style | TO-263 |
| Packaging | Each |
| Dropout Voltage Vdo | 350mV |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | MICROCHIP |
| Part Number | MIC29151-3.3WU |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 594.94 |
| 3-5 | ₹ 588.87 |
| 5-10 | ₹ 576.73 |
| 10+ | ₹ 564.58 |
Bulk discount will be automatically applied during checkout based on quantity.
