The MIC2287CYD5 TR is a 1.2MHz PWM white LED Driver optimized for constant-current, white LED driver applications with a maximum output voltage of 34V and a switch current of over 500mA, this easily drives a string of up to eight white LEDs in series, ensuring uniform brightness and eliminating several ballast resistors. The driver implements a constant frequency, 1.2MHz PWM control scheme. The high frequency PWM operation saves board space by reducing external component sizes. The added benefit of the constant frequency PWM scheme as opposed to variable frequency topologies is much lower noise and input ripple injected back to the battery source. To optimize efficiency, the feedback voltage is set to only 95mV. This reduces the power dissipation in the current set resistor and allows the lowest total output voltage, hence minimal current draw from the battery.
- Over-temperature protection
- 95mV Feedback voltage
Applications
Communications & Networking, Consumer Electronics, LED Lighting
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Device Topology |
Boost (Step Up) |
| Input Voltage Min |
2.5V |
| Input Voltage Max |
10V |
| Output Voltage Max |
34V |
| Output Current Max |
500mA |
| Switching Frequency |
1.2MHz |
| No. of Outputs |
1Outputs |
| IC Mounting |
Surface Mount |
| Driver Case Style |
TSOT-23 |
| No. of Pins |
5Pins |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
105°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
| MSL |
- |
Other details
| Brand |
MICROCHIP |
| Part Number |
MIC2287CYD5-TR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|

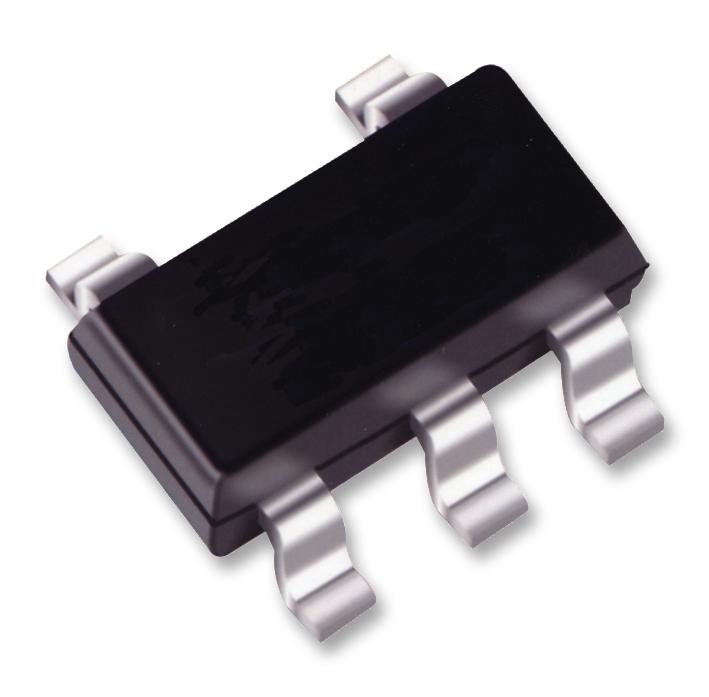

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
