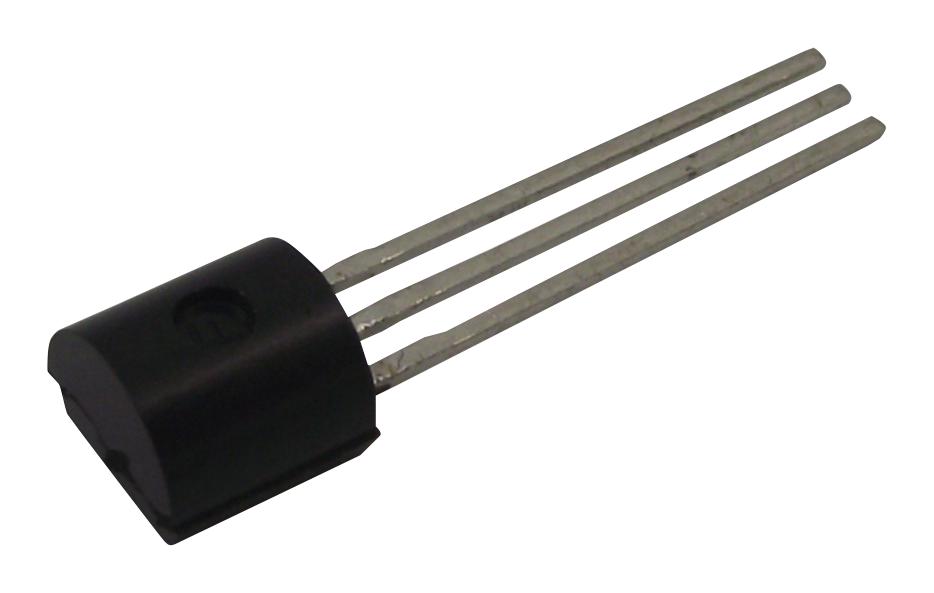

Microchip MCP9701A-E/TO MCP9701A-E/TO Temperature Sensor IC Voltage ± 2°C 0 °C 70 TO-92 3 Pins

The MCP9701A-E/TO is a Low-power Linear Active Thermistor� IC, it is a sensor whose output voltage is directly proportional to measured temperature. The MCP9701A can accurately measure temperature from -40 to +125°C. The output of the MCP9701A is calibrated to a slope of 19.53mV/°C and has a DC offset of 400mV. The offset allows reading negative temperatures without the need for a negative supply.

• Tiny analog temperature sensor
• ±2°C Accuracy from 0 to +70°C
• -2°C/+4°C Accuracy from -40 to +125°C
• 12µA Very low operating current
• No external components required
• Wide operating voltage range
• Optimized to drive large capacitive loads

Applications

Computers & Computer Peripherals, Consumer Electronics, Commercial, Portable Devices, Industrial, Automotive

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	MCP9701A-E/TO
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
