Description

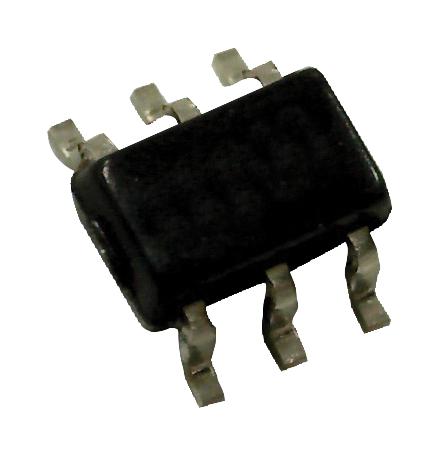

The MCP6C02 high-side current sense amplifier is offered with preset gains of 20, 50 and 100 V/V. The Common-mode input range (Vip) is +3V to +65V. The differential-mode input range (Vdm = Vip â�� Vim) supports unidirectional and bidirectional applications. The power supply can be set between 2.0V and 5.5V. This device is specified from -40°C to +125°C (E-Temp) and is provided in the SOT-23 package.
- Single Amplifier
- Bidirectional or Unidirectional
- Input (Common-mode) Voltages: +3.0V to +65V, specified; +2.8V to +68V, operating; -0.3V to +70V, survival
- Power Supply: 2.0V to 5.5V; Single or Dual (Split) Supplies
- High DC Precision - VOS: ±1.65 μV (typical); CMRR: 154 dB (typical); PSRR: 138 dB (typical); Gain Error: ±0.1% (typical)
- Preset Gains: 20, 50 and 100 V/V
- POR Protection: HV POR for Vip � Vss; LV POR for Vdd � Vss
- Bandwidth: 500kHz (typical)
- Supply Current: 490μA (typical)
Applications
Motor Drive & Control, Industrial, Power Management
Footnotes
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Input Bias Current: 170µA |
| No. of Pins: 6Pins |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| Bandwidth: 500kHz |
| Supply Voltage Min: 2V |
| Supply Voltage Max: 5.5V |
| Input Offset Voltage: 1.9µV |
| CMRR: 159dB |
Other details
| Brand | MICROCHIP |
| Part Number | MCP6C02T-020E/CHY |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
