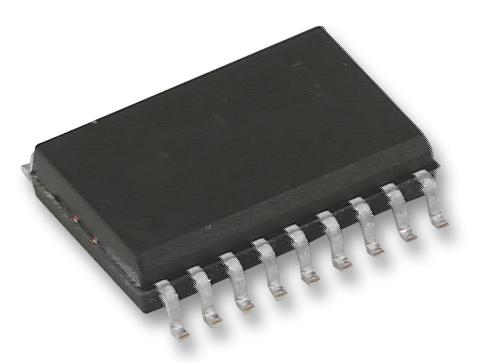

MICROCHIP MCP2515-I/SO CAN Interface, Controller, CAN Controller, SPI, 1 Mbps, 2.7 V, 5.5 V, SOIC, 18 Pins

Microchip Technology's MCP2515-I/SO is a stand alone Controller Area Network (CAN) controller. It is capable of transmitting and receiving both standard and extended data and remote frames. The MCP2515-I/SO has two acceptance masks and six acceptance filters that are used to filter out unwanted messages, thereby reducing the host MCU's overhead. The MCP2515-I/SO interfaces with microcontrollers (MCUs) via an industry standard Serial Peripheral Interface (SPI).

• 0-8 byte length in the data field
• Standard and extended data and remote frames
• Two receive buffers with prioritised message storage
• Six 29 bit filters
• Two 29 bit masks
• Three transmit buffers with prioritisation and abort features
• High speed SPI interface (10 MHz)
• One-shot mode ensures message transmission is attempted only one time
• Clock out pin with programmable prescaler and can be used as a clock source for other devices
• Start-of-frame signal available for monitoring the SOF Signal
• Interrupt output pin with selectable enables
• Low power CMOS Technology

Applications

Automotive, Communications & Networking, Consumer Electronics, Embedded Design & Development
