Microchip MCP2515-E/SO MCP2515-E/SO CAN Interface Controller 2.7 V 5.5 18 Pins

The MCP2515-E/SO is a stand-alone controller area network (CAN) Controller that implements the CAN specification, version 2.0B. It is capable of transmitting and receiving both standard and extended data and remote frames. The MCP2515 has two acceptance masks and six acceptance filters that are used to filter out unwanted messages, thereby reducing the host MCU's overhead. The MCP2515 interfaces with microcontrollers (MCUs) via an industry standard Serial Peripheral Interface (SPI). The device consists of three main blocks, that is CAN module, which includes the CAN protocol engine, masks, filters, transmit and receive buffers. The control logic and registers that are used to configure the device and its operation and the SPI protocol block.

• Simple SPI interface to any MCU
• One-shot mode ensures message transmission is attempted only once
• Start-of-frame (SOF) output
• Low-power CMOS technology
• Implements CAN V2.0B at 1Mb/s
• Receive buffers, masks and filters
• Data byte filtering on the first two data bytes
• Three transmit buffers with prioritization and abort features
• One-shot mode ensures message transmission is attempted only one time
• Clock out pin with programmable prescaler
• Start-of-frame (SOF) signal for monitoring the SOF signal
• Interrupt output pin with selectable enables
• Buffer full output pins configurable as interrupt output for each receive buffer
• Request-to-Send (RTS) input pins individually configurable as general purpose inputs

Applications

Industrial, Communications & Networking

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	MCP2515-E/SO
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN

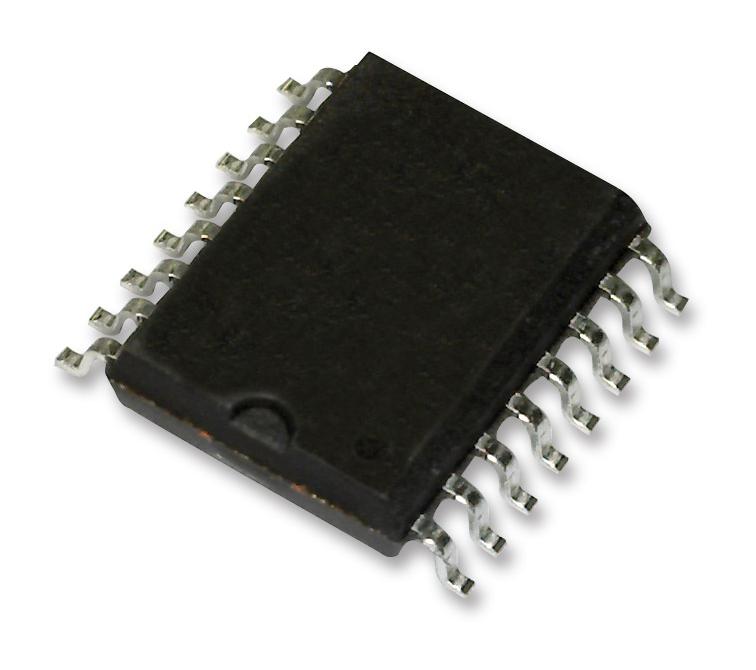

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
