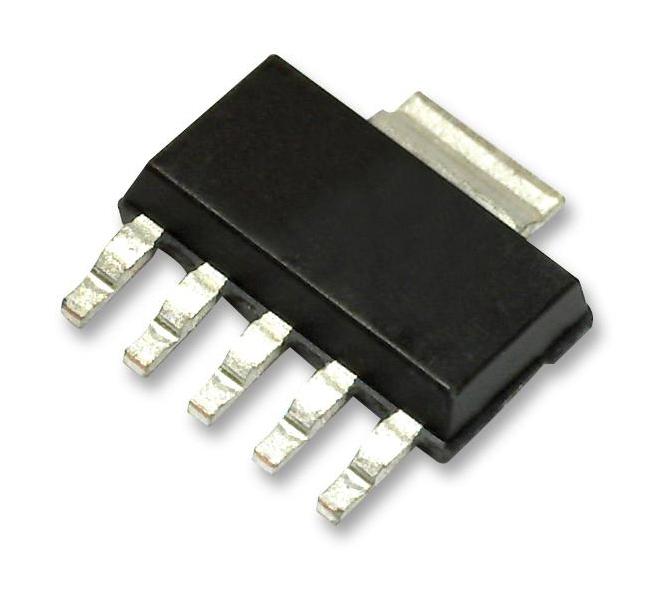

Microchip MCP1826T-ADJE/DC MCP1826T-ADJE/DC LDO Voltage Regulator Adjustable 2.3V to 6V in 250mV Drop 800mV 5V/1A out SOT-223-5

The MCP1826T-ADJE/DC is a 1A ceramic output cap stable low output voltage Low Dropout Regulator with shutdown and power good functions (fixed output version only). It provides high-current and low-output voltages. The MCP1826 comes in a fixed or adjustable output voltage version, with an output voltage range of 0.8 to 5.0V. The 1000mA output current capability, combined with the low-output voltage capability, make the MCP1826 a good choice for new sub-1.8V output voltage LDO applications that have high current demands. The MCP1826 is stable using ceramic output capacitors that inherently provides lower output noise and reduce the size of the entire regulator solution. Only 1µF of output capacitance is needed to stabilize the LDO.

• 300mV (typical) Low dropout voltage
• Output voltage from 0.8V to 5.0V, both fixed and adjustable
• Stable with 1µF ceramic output cap
• Power good output
• 120µA Typical low supply current
• Low shutdown current of less than 0.1µA (typical)

Applications

Communications & Networking, Computers & Computer Peripherals, Automotive

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	MCP1826T-ADJE/DC
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN
