Low-voltage, low quiescent current LDO regulator suitable for use in high-speed driver chipset power, networking backplane cards, notebook computers, network interface cards, palmtop computers.
- 1000mA output current capability
- Low dropout voltage
- Typical output voltage tolerance: 0.5%
- Stable with 1.0µF ceramic output capacitor
- Fast response to load transients
- Low supply current
- Fixed delay on power good output
- Short circuit current limiting and over temperature protection
Product details
| Output Type:
Fixed
|
| Input Voltage Min:
2.3V
|
| Input Voltage Max:
6V
|
| No. of Outputs:
1Outputs
|
| Output Voltage Nom:
3.3V
|
| Output Voltage Min:
-
|
| Output Voltage Max:
-
|
| Dropout Voltage Typ @ Current:
250mV
|
| IC Mounting:
Surface Mount
|

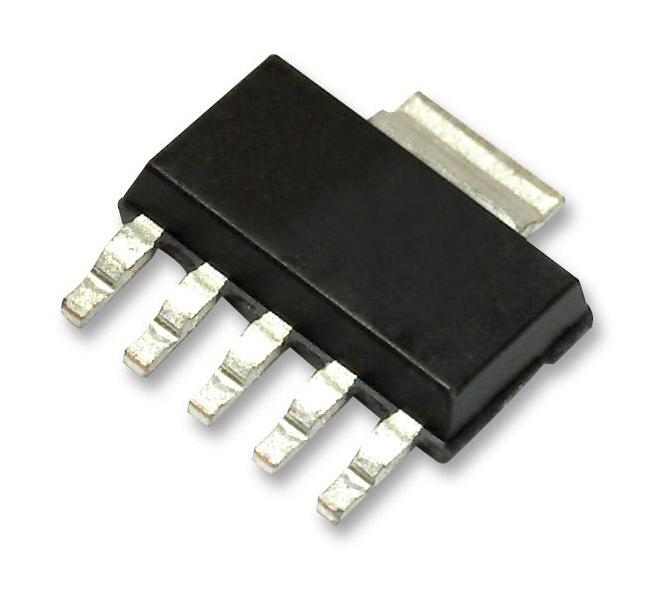

| IC Case / Package:
SOT-223
|
| No. of Pins:
5Pins
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
125°C
|
| Product Range:
3.3V 1A LDO Voltage Regulators
|
| MSL:
MSL 1 - Unlimited
|
Other details
| Brand |
MICROCHIP |
| Part Number |
MCP1826T-3302E/DC |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
