Description

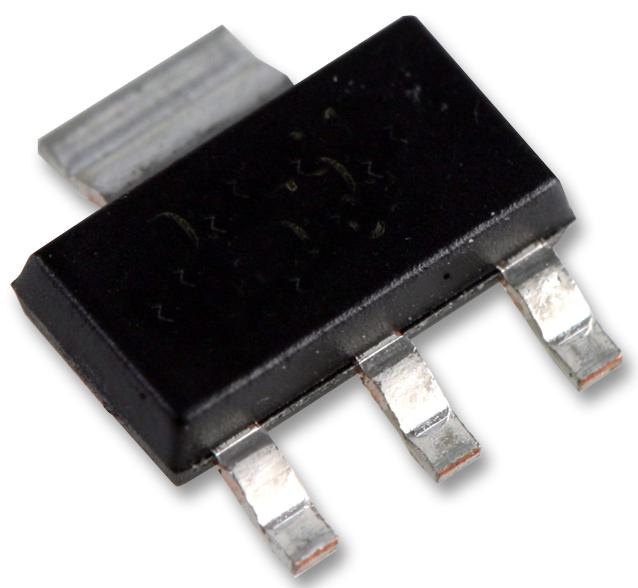

The MCP1826S-3302E/DB is a fixed output low dropout (LDO) linear regulator in 3 pin SOT-223 package. This regulator provides high current and low output voltages. The 1A output current capability combined with low output voltage capability make the MCP1826S-3302E/DB good choice for new sub 1.8V output voltage LDO applications that have high current demands. The MCP1826S-3302E/DB is stable using ceramic output capacitors that inherently provide lower output noise, reduce size and cost of entire regulator solution. Only 1μF of output capacitance is needed to stabilize LDO. The overtemperature and short circuit current limiting provide additional protection for LDO during system fault conditions.
- Fixed output voltage of 3.3V
- 1A output current
- Input operating voltage range from 2.3V to 6.0V
- Low dropout voltage of 250mV at 1A output current
- Typical output voltage tolerance of 0.5%
- Fast response to load transients
- Low supply current of 120μA
- Power good output
- Operating junction temperature range from -40°C to 125°C
Applications
Power Management, Portable Devices, Consumer Electronics, Automotive
Product details
Other details
| Brand | MICROCHIP |
| Part Number | MCP1826S-3302E/DB |
| Quantity | Each |
| Technical Data Sheet EN |  |
