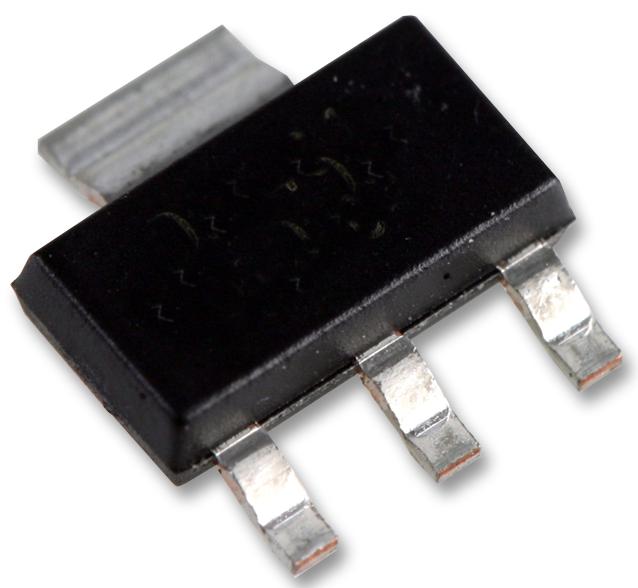

Microchip MCP1825S-3302E/DB MCP1825S-3302E/DB Fixed LDO Voltage Regulator 2.1V to 6V 210mV Dropout 3.3Vout 500mAout SOT-223-3

The MCP1825S-3302E/DB is a fixed output low dropout (LDO) linear regulator in 3 pin SOT-223 package. This regulator provides high current and low output voltage. The 500mA output current capability combined with low output voltage capability make the MCP1825S-3302E/DB good choice for new sub 1.8V output voltage LDO applications that have high current demands. The MCP1825S-3302E/DB is stable using ceramic output capacitors that inherently provide lower output noise, reduce size and cost of entire regulator solution. Only 1µF of output capacitance is needed to stabilize LDO. The overtemperature and short circuit current limiting provide additional protection for LDO during system fault conditions.

• Fixed output voltage of 3.3V
• 500mA output current capability
• Input operating voltage range from 2.1V to 6.0V
• Low dropout voltage of 210mV at 500mA output current
• Typical output voltage tolerance of 0.5%
• Fast response to load transients
• Low supply current of 120µA
• Power good output
• Operating junction temperature range from -40°C to 125°C

Applications

Power Management, Portable Devices, Consumer Electronics, Automotive
