| ₹ 119.15 includes GST and import duties. | |
| B2B customers can avail ₹ 18.17 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The MCP1755ST-5002E/DB is a 16V high PSRR low dropout Voltage Regulator with short-circuit current fold back. This regulator provides up to 300mA of current. The input operating voltage range is specified from 3.6 to 16V continuous, 18V absolute maximum. The MCP1755S typically delivers 70dB of ripple rejection at 1kHz, making the device ideal for AC sensitive applications like GFCI and AFCI circuit breaker designs. The current fold back feature is a true short-circuit current fold back. The device current will fall back towards 10mA under short-circuit conditions. When the short is removed, the device will recover and continue operating.
- >70dB at 1kHz Typical high PSRR
- 68µA Typical quiescent current
- 300mV Typical at 300mA low dropout voltage
- 0.85% Typical output voltage tolerance
- Output voltage tolerances of ±2.0% over entire temperature range
- Stable with minimum 1µF output capacitance
- Power good output
- Shutdown input
- True current fold back protection
- Short-circuit protection
- Over-temperature protection
Applications
Power Management, Sensing & Instrumentation, Consumer Electronics, Automotive
Product details
| Input Voltage Max | 16V |
| Fixed Output Voltage Nom. | 5V |
| Operating Temperature Min | -40°C |
| Output Current | 300mA |
| Adjustable Output Voltage Max | - |
| Operating Temperature Max | 125°C |
| No. of Pins | 3Pins |
| Adjustable Output Voltage Min | - |
| Output Type | Fixed |
| Input Voltage Min | 3.6V |
| Product Range | 5V 300mA LDO Voltage Regulators |
| Automotive Qualification Standard | AEC-Q100 |
| LDO Regulator Case Style | SOT-223 |
| Packaging | Each |
| Dropout Voltage Vdo | 300mV |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | MCP1755ST-5002E/DB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

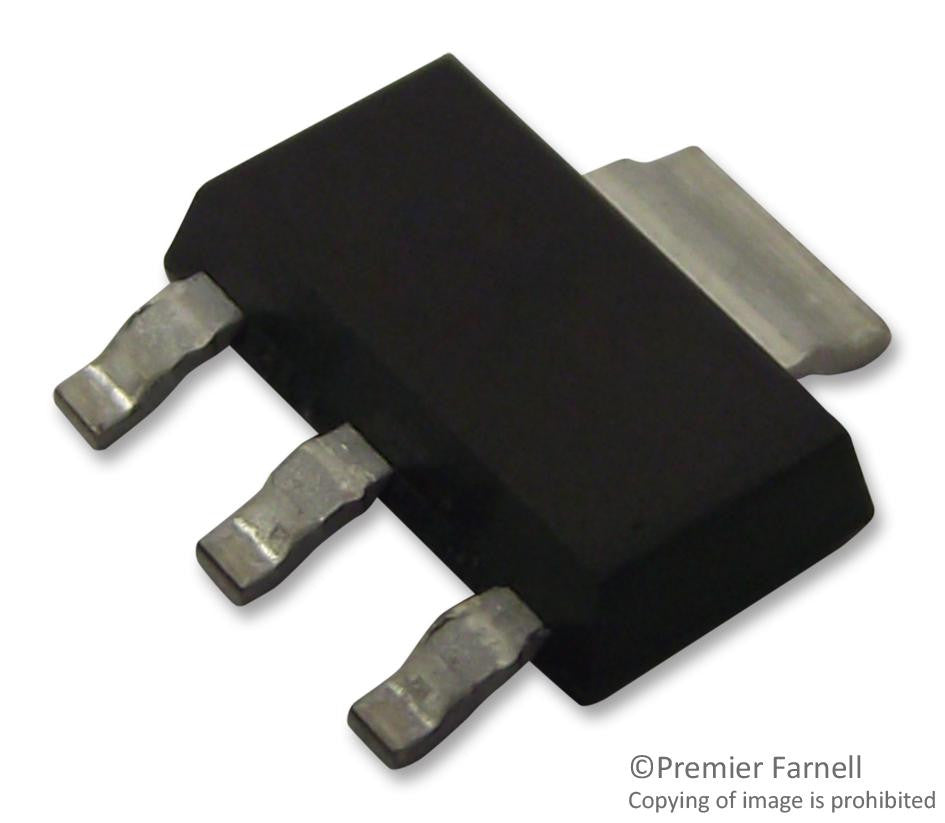

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 116.77 |
| 3-5 | ₹ 115.58 |
| 5-10 | ₹ 113.19 |
| 10+ | ₹ 110.81 |
Bulk discount will be automatically applied during checkout based on quantity.
