Description

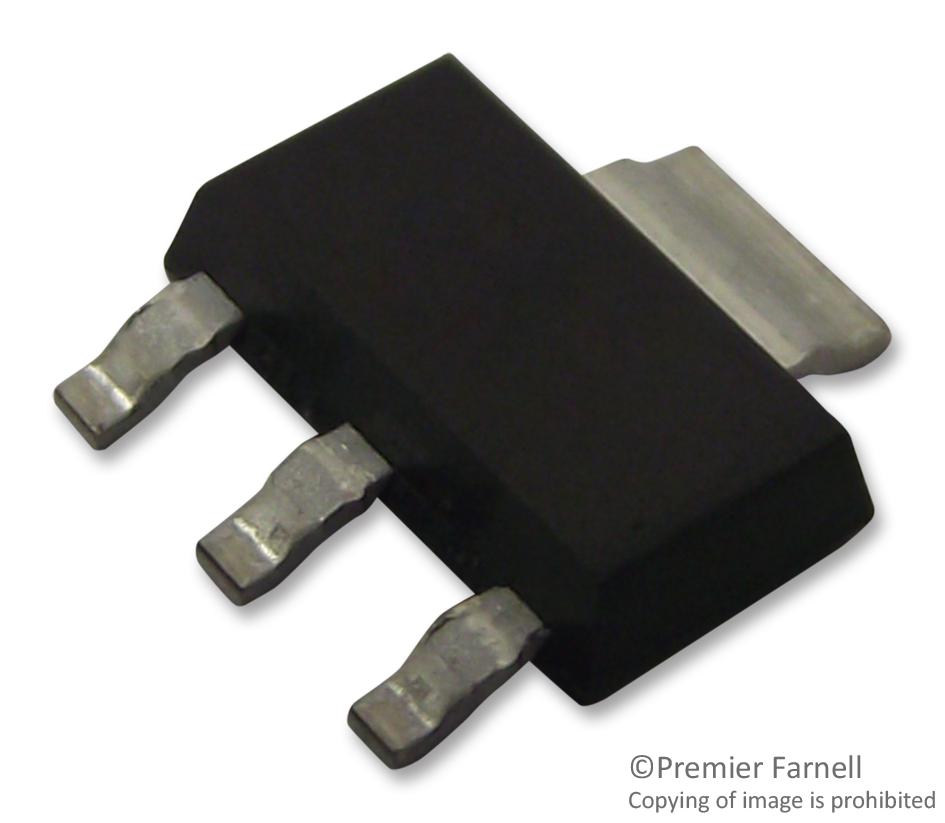

This is a Fixed LDO Voltage Regulator, 3.6V to 16V, 300mV drop, 5V/150mA out, SOT-223-3 product from MICROCHIP with the model number MCP1754ST-5002E/DB
Product details
| Output Type | Fixed |
| Input Voltage Min | 3.6V |
| Input Voltage Max | 16V |
| Fixed Output Voltage Nom. | 5V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 150mA |
| Dropout Voltage Vdo | 300mV |
| LDO Regulator Case Style | SOT-223 |
| No. of Pins | 3Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Product Range | 5V 150mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | MICROCHIP |
| Part Number | MCP1754ST-5002E/DB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
