Description

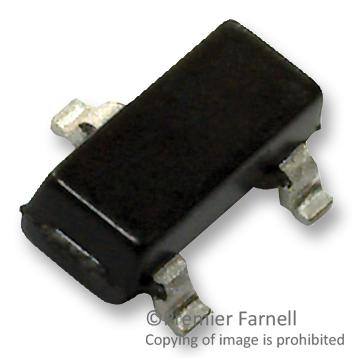

This is a Fixed LDO Voltage Regulator, 2.7V to 13.2V, 625mV drop, 2.8V/250mA out, SOT-23A-3 product from MICROCHIP with the model number MCP1702T-2802E/CB
Product details
| Output Type | Fixed |
| Input Voltage Min | 2.7V |
| Input Voltage Max | 13.2V |
| Fixed Output Voltage Nom. | 2.8V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 250mA |
| Dropout Voltage Vdo | 625mV |
| LDO Regulator Case Style | SOT-23A |
| No. of Pins | 3Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Product Range | 2.8V 250mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | Yes |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | MCP1702T-2802E/CB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
