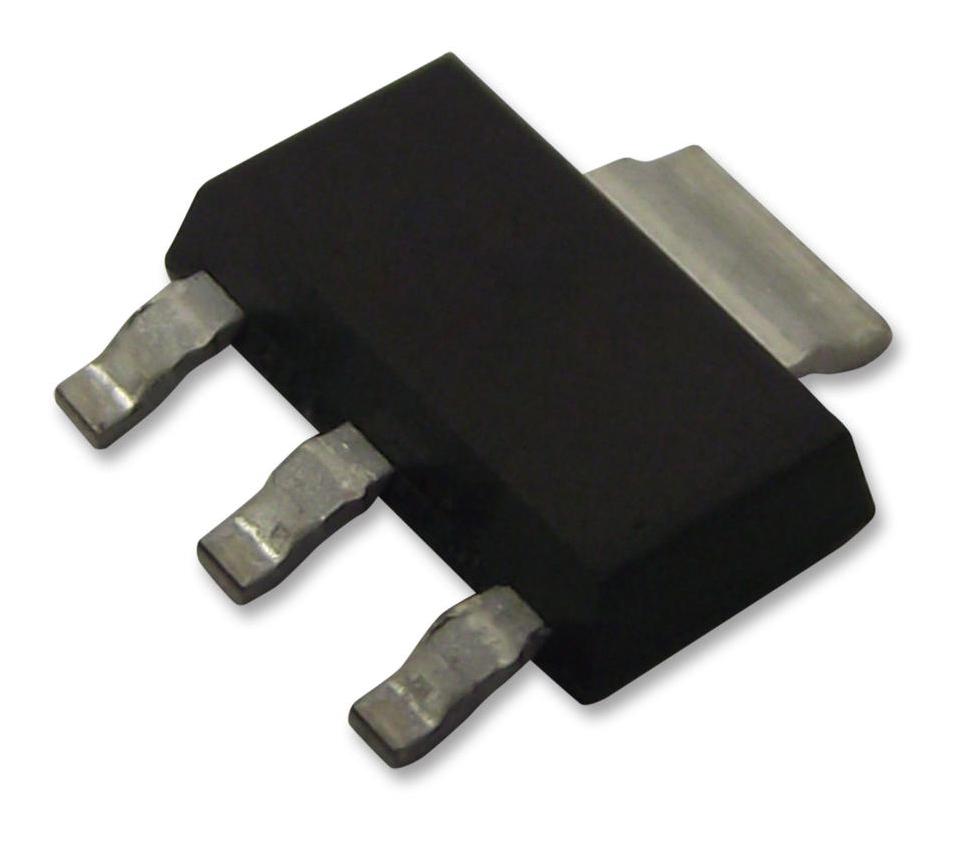

Microchip MCP1700T-3302E/MB MCP1700T-3302E/MB Fixed LDO Voltage Regulator 2.3V to 6V 178mV Dropout 3.3Vout 250mAout SOT-89-3

The MCP1700T-3302E/MB is a low quiescent current, CMOS low dropout (LDO) voltage regulator in 3 pin SOT-89 package. This regulator is an ideal choice for two and three primary cell battery powered applications and single cell Li-Ion powered applications. The output voltage tolerance of MCP1700T-3302E/MB is typically ±0.4% at 25°C and ±3% maximum over operating junction temperature range of -40°C to +125°C. The LDO output is stable when using 1µF output capacitance. Ceramic, tantalum or aluminium electrolytic capacitors can be used for input and output. The MCP1700T-3302E/MB also permits high currents in small packages when operated with minimum VIN - VOUT differentials. The circuit also incorporates short circuit protection and over temperature protection to ensure maximum reliability.

• Fixed output voltage is 3.3V
• Quiescent current is typically 1.6µA
• Input operating voltage range from 2.3V to 6V
• Maximum output current is 250mA
• Dropout voltage is 178mV at 250mA load current
• Operating junction temperature range from -40°C to 125°C
• Power supply ripple rejection ratio (PSRR) of 44dB

Applications

Power Management, Consumer Electronics, Portable Devices, Automotive
