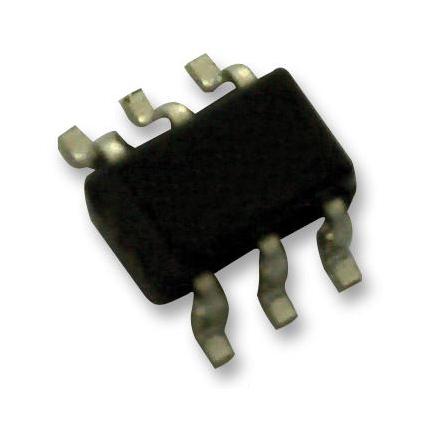

Microchip MCP16331T-E/CH MCP16331T-E/CH DC-DC Switching Buck (Step Down) Regulator Adjustable 4.4V-50Vin 2V-24Vout 500mAout SOT-23-6

The MCP16331T-E/CH is a highly integrated high-efficiency fixed frequency step-down DC-DC Converter operates from input voltage sources up to 50V. Integrated features includes a high side switch, fixed frequency peak current mode control, internal compensation, peak current limit and over-temperature protection. Minimal external components are necessary to develop a complete step-down DC-DC converter power supply. High converter efficiency is achieved by integrating the current-limited, low-resistance, high-speed N-channel MOSFET and associated drive circuitry. High switching frequency minimizes the size of external filtering components resulting in a small solution size.

• Up to 96% efficiency
• 2% Output voltage accuracy
• 500kHz Fixed frequency
• Adjustable output voltage
• 6µA Low device shutdown current
• Peak current mode control
• Internal compensation
• Internal soft-start
• Cycle-by-cycle peak current limit
• 4.1V to start, 3.6V to stop Under-voltage lockout (UVLO)
• Over-temperature protection

Applications

Power Management, Industrial, Consumer Electronics, Automotive, Metering, Medical

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	MCP16331T-E/CH
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
