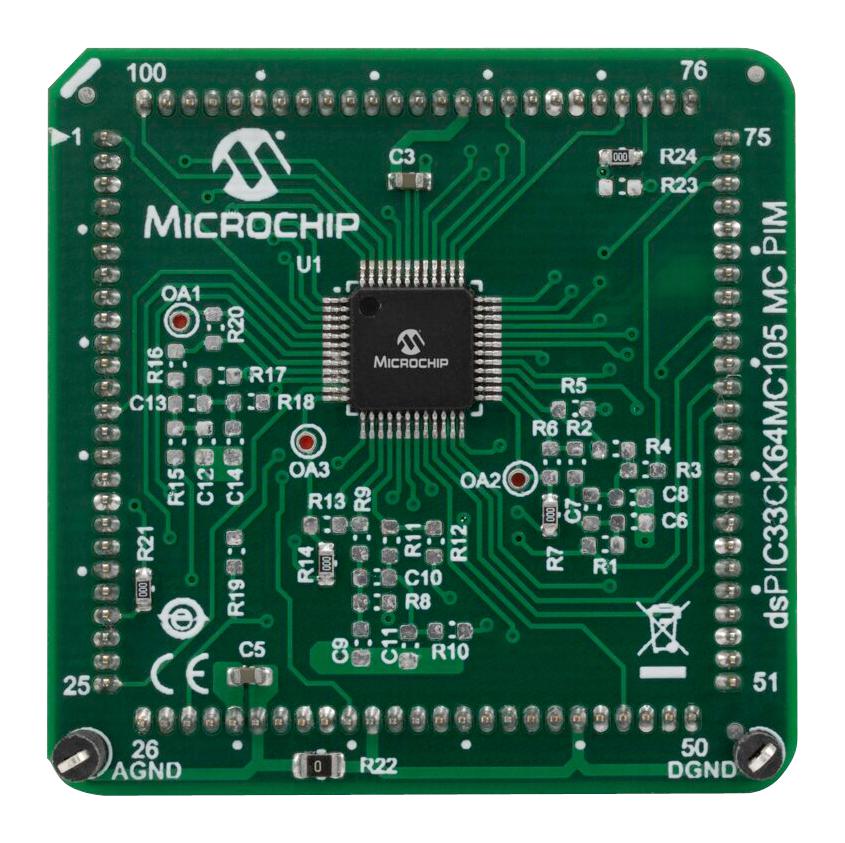

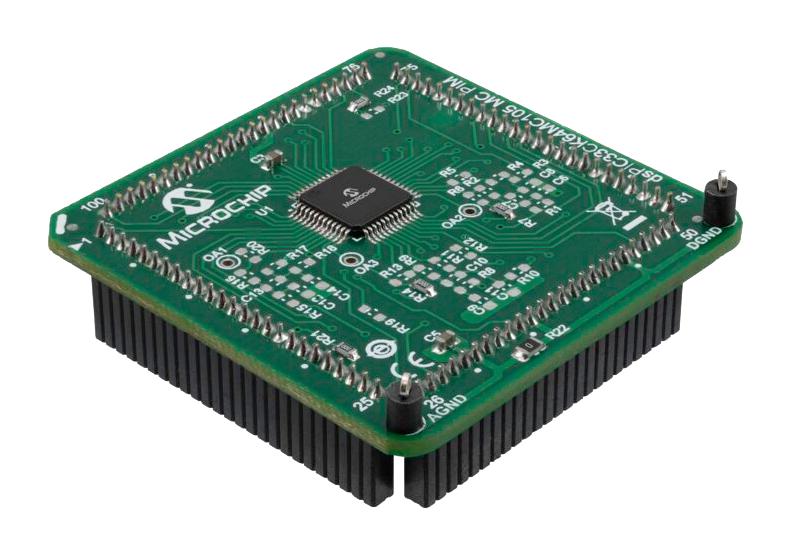

dsPIC33CK64MC105 external op-amp motor control PIM features a 48-pin dsPIC33CK64MP105 Digital Signal Controller (DSC) and can be used for evaluation of the dsPIC33CK64MC10x and dsPIC33CK32MC10x devices. It is designed to use the external op amps located on the MCLV-2 [DM330021-2] , MCHV-2 [DM330023-2] and MCHV-3 [DM330023-3] development boards and the Low Voltage Motor Control Development Bundle [DV330100]. This PIM can also be used with the MCSM Development Board [DM330022-1].
- dsPIC33CK64M105-I/PT (48-pin TQFP) based PIM
Product details
Silicon Manufacturer |
Microchip |
Core Architecture |
dsPIC |
Core Sub-Architecture |
dsPIC33 |
Silicon Core Number |
dsPIC33CK64MC105 |
Silicon Family Name |
dsPIC33CKxxMC1xx |
For Use With |
Microchip MCLV-2(DM330021-2)/MCHV-2(DM330023-2)/MCHV-3(DM330023-3) Boards & Dev Bundle (DV330100) |
Kit Contents |
External Op-Amp Motor Control Plug-in Module dsPIC33CK64MC105 |
Product Range |
- |
Other details
Brand |
MICROCHIP |
Part Number |
MA330051-1 |
Quantity |
Each |
User Manual EN |
|
