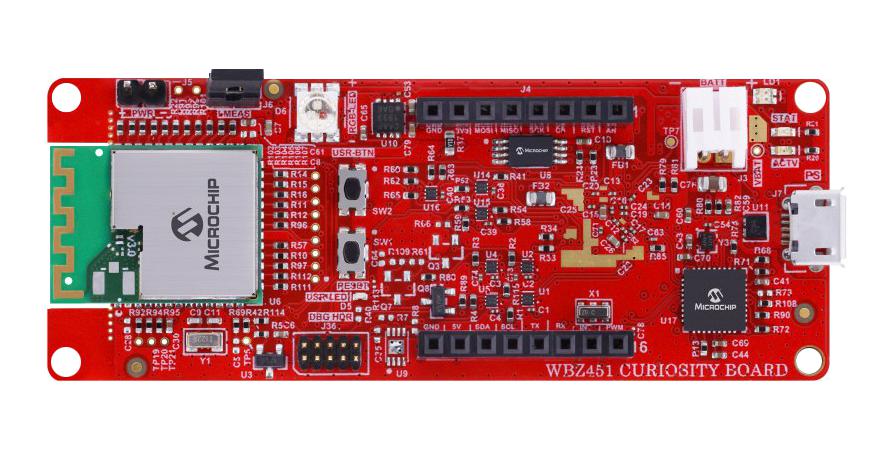

EV96B94A is a curiosity development board, based on the WBZ451PE module, and is the best development platform for evaluating the PIC32CX-BZ2 family of MCUs. It comes preconfigured with an out-of-the-box multi-protocol demo application and features a temperature sensor, a current measurement header, an RGB LED and a MikroElectronika mikroBUSTM socket to attach a plethora of sensors and add-on boards.
- WBZ451PE Bluetooth low energy and zigbee RF module, USB or Li-Po battery powered
- On-board programmer/debug circuit using PKoB4 based on Microchip SAME70 MCU
- Microchip MCP73871 Li-Ion/LiPo battery charger with power path management
- mikroBUS socket to expand functionality using MikroElectronika click adapter boards
- RGB LED connected to pulse width modulation (PWM), one reset switch
- One user-configurable switch, one user LED, 32.768KHz crystal
- Microchip SST26VF064B, 64Mbit external QSPI flash memory
- Microchip MCP9700A, low power analogue voltage temperature sensor
- 10-pin ARM serial wire debug (SWD) header for external programmer/debugger
Product details
| Silicon Manufacturer:
Microchip
|
| No. of Bits:
32bit
|
| Silicon Family Name:
PIC32
|
| Core Architecture:
ARM
|
| Core Sub-Architecture:
Cortex-M4F
|
| Silicon Core Number:
PIC32CX1012BZ25048
|
| Kit Contents:
WBZ451PE Module, Type-A Male to Micro-B USB Cable
|
| Product Range:
PIC32 Family PIC32CX-BZ2 Series Microcontrollers
|
Other details
| Brand |
MICROCHIP |
| Part Number |
EV96B94A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
