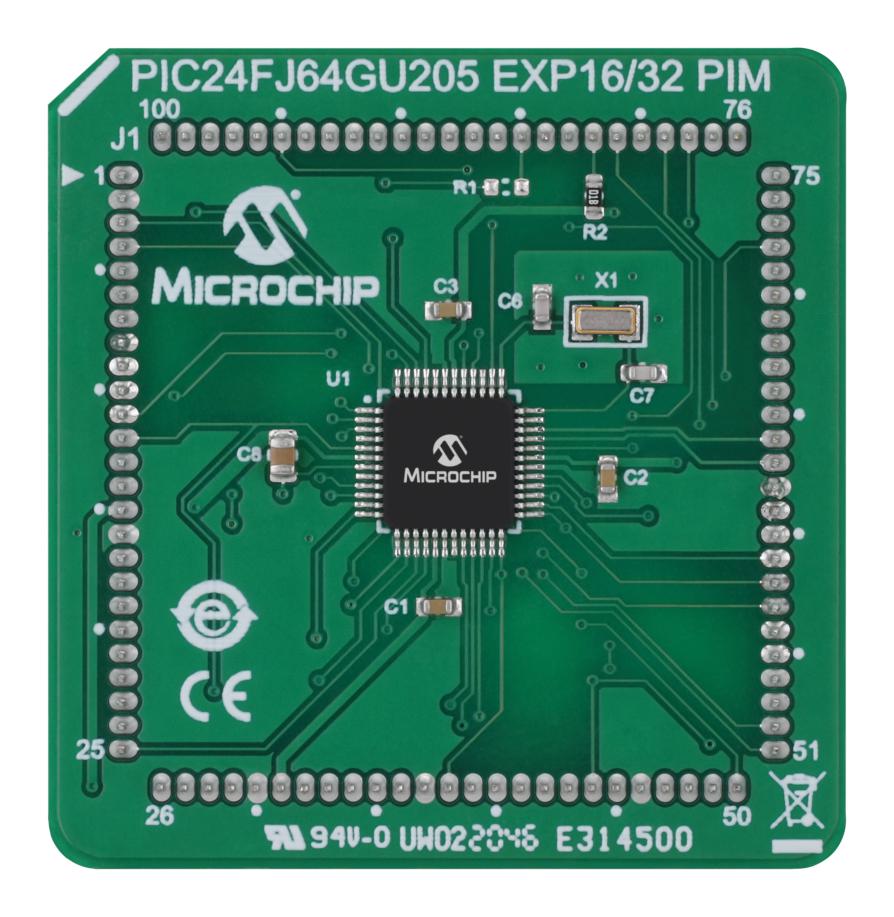

PIC24FJ64GU205 general purpose Plug-in Module (PIM) is designed to demonstrate the capabilities of the PIC24FJ64GP205 and PIC24FJ64GU205 family using the Explorer 16/32 Development Board (DM240001-2). All the pins from the device are mapped directly to the PIM connector (100-Pin ICE). The usage of this PIM with the Explorer 16/32 Development Board (DM240001-2) requires an external debugger with support for PIC24FJ64GU205, which includes MPLAB® ICD 4 (DV164045), PICkit 4 (PG164140), or Snap (PG164140) In-Circuit Debuggers/Programmers. This PIM is not supported by the on-board debugger of the Explorer 16/32 Development Board (DM240001-2).
Product details
| Silicon Manufacturer |
Microchip |
| Core Architecture |
PIC |
| Core Sub-Architecture |
PIC24 |
| Silicon Core Number |
PIC24FJ64GU205, PIC24FJ64GU205 |
| Silicon Family Name |
PIC24FJxxGUxxx |
| For Use With |
Microchip Explorer 16/32 Development Board (DM240001-2) |
| Kit Contents |
Plug-in Module PIC24FJ64GU205/PIC24FJ64GU205 |
| Product Range |
- |
Other details
| Brand |
MICROCHIP |
| Part Number |
EV95N98A |
| Quantity |
Each |
| Manufacturer Product Page EN |
 |
