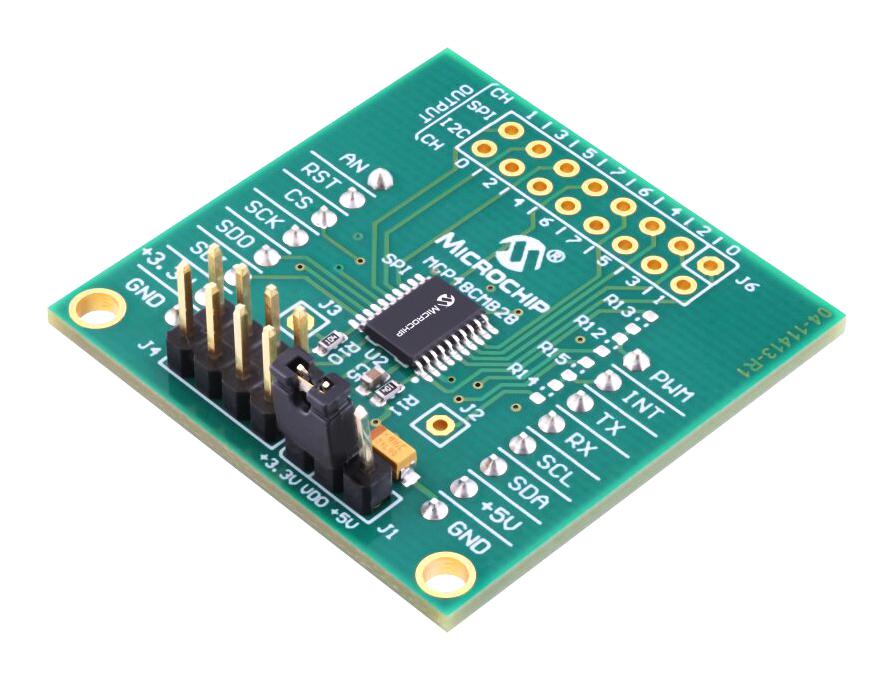

EV76B70A is a 1LSb octal DAC evaluation board. It is used to evaluate the MCP47CXBX8 and MCP48CXBX8 DAC families. Users can now easily evaluate features of the MCP47CXBX8/MCP48CXBX8 devices by connecting the evaluation board to any of the Microchip Curiosity microcontroller development boards. The 1LSb Octal DAC Evaluation Board supports the mikroBUS� click� board and can be mounted on any of the mikroBUS supported MCU boards. The 1LSb Octal DAC Evaluation Board supports both the I2C family (MCP47CXBX8) of devices and the SPI DAC family (MCP48CXBX8).
- Supports both SPI and I2C devices
- Supports 5V and 3.3V options
- mikroBUS support makes it easy to evaluate with any of the Microchip MCU boards
- External voltage reference option for the DAC
- MCP150x voltage reference on board for external VREF option
Other details
Brand |
MICROCHIP |
Part Number |
EV76B70A |
Quantity |
Each |
User Manual EN |
 |
