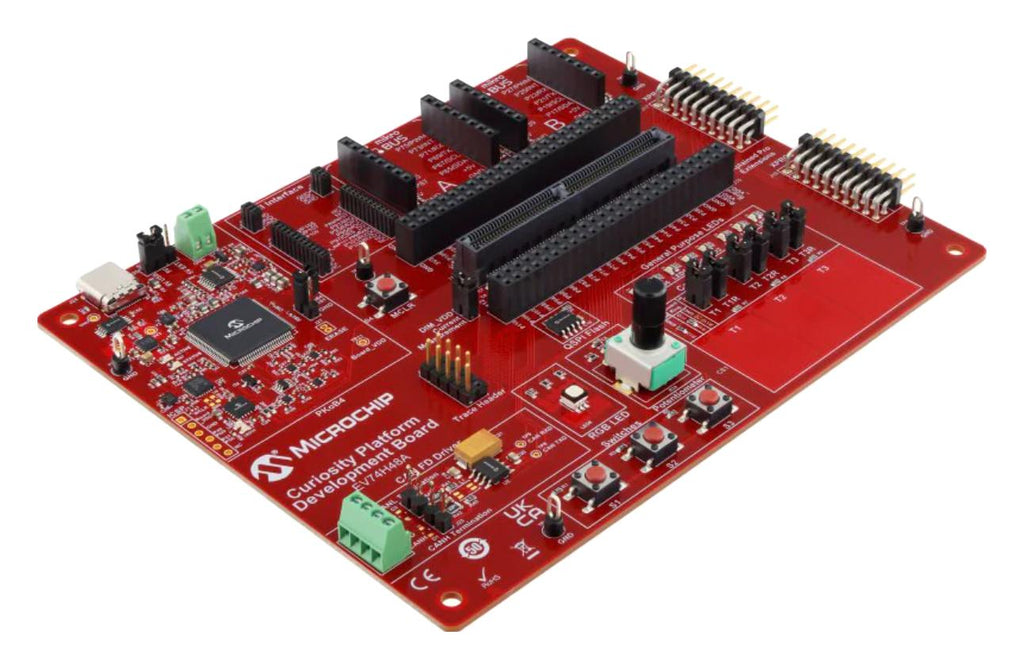

MICROCHIP EV74H48A Curiosity Platform Development Board, dsPIC33A, PIC32A, 32Bit

EV74H48A is a curiosity platform development board. This is a full-featured development and demonstration platform enabling customers to explore the capabilities of the dsPIC33A DSC family and also the PIC32A MCU family. The board operation requires the insertion of a 120-pin general purpose (DIM) containing a dsPIC33A DSC device or the PIC32A MCU device (purchased separately). The board supports custom feature expansion by providing mikroBUS� and XPLAINED PRO interfaces, allowing companion development boards such as QT Touch extension boards, BIST XPRO extension kits, various sensors and interfaces via Click Boards� to be added. A QSPI connection to a 2Mbit SQI Flash EEPROM supports external non-volatile data storage. The board user interface includes one RGB LED, a 10K ohm potentiometer, three push buttons, eight LED�s and three capacitive touch pads. Each of these elements can be programmed for any purpose to create the desired interaction between the user and the board behaviour.

• dsPIC33A or PIC32A general purpose DIM connector
• Integrated PICkit� on-board 4 (PKOB4) programmer/debugger
• 2x mikroBUS� interfaces for H/W expansion, compatible with a wide range of existing Click boards�
• 2 Xplained Pro extension headers, CAN/CAN-FD driver circuit, RMII interface (50 mil)
• 1x red/green/blue (RGB) LED
• 8x general purpose green indication LEDs
• 3x general purpose push buttons
• 3 on-board capacitive touch pads
• MCLR reset push button
• 2-channel USB hub supporting PKOB4 programming and UART/COM channel simultaneously
