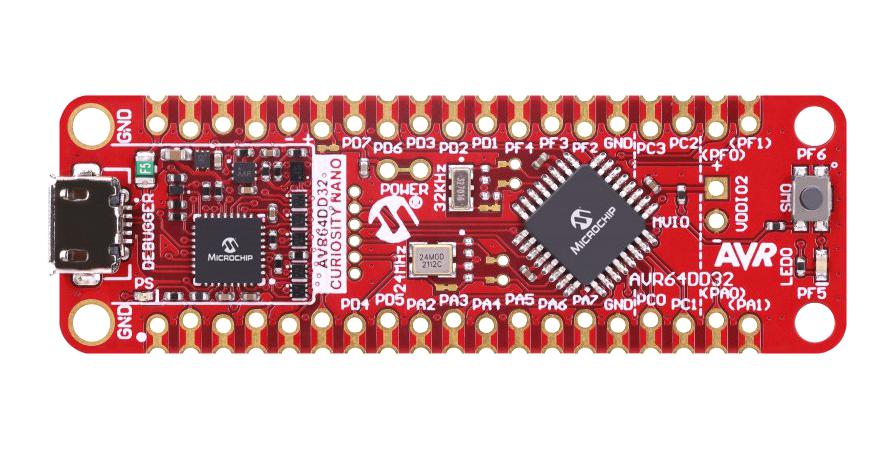

EV72Y42A is a AVR64DD32 Curiosity Nano evaluation kit is a hardware platform to evaluate microcontrollers in the AVR® DD Family. This board has the AVR64DD32 microcontroller (MCU) mounted. Supported by both MPLAB® X IDE and Microchip Studio, the board provides easy access to the features of the AVR64DD32 to explore how to integrate the device into a custom design. It includes an on-board debugger. No external tools are necessary to program and debug the AVR64DD32.
- AVR64DD32 microcontroller
- 1 x yellow user LED, 1 x mechanical user switch, 1 x 32.768kHz crystal, 1 x 24MHz crystal
- USB powered
- MIC5353 LDO regulator controlled by the on-board debugger
- 1.8-5.1V output voltage (limited by USB input voltage)
- 500mA maximum output current (limited by ambient temperature and output voltage)
Product details
| Silicon Manufacturer |
Microchip |
| No. of Bits |
8bit |
| Silicon Family Name |
AVR-DD |
| Core Architecture |
AVR |
| Core Sub-Architecture |
- |
| Silicon Core Number |
AVR64DD32 |
| Kit Contents |

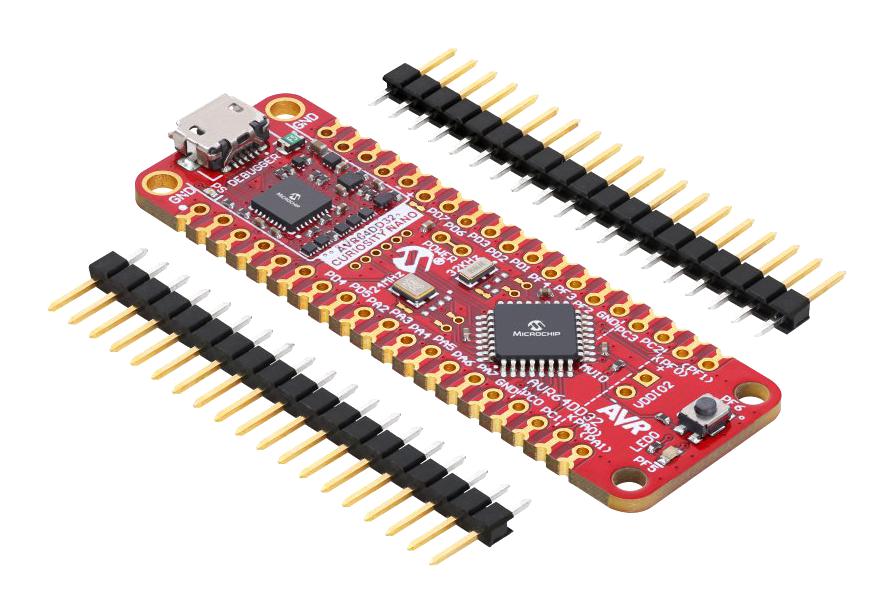

Curiosity Nano Evaluation Board AVR64DD32, 1x19 Pin Header Strip |
| Product Range |
- |
Other details
| Brand |
MICROCHIP |
| Part Number |
EV72Y42A |
| Quantity |
Each |
| User Manual EN |
 |
