Description

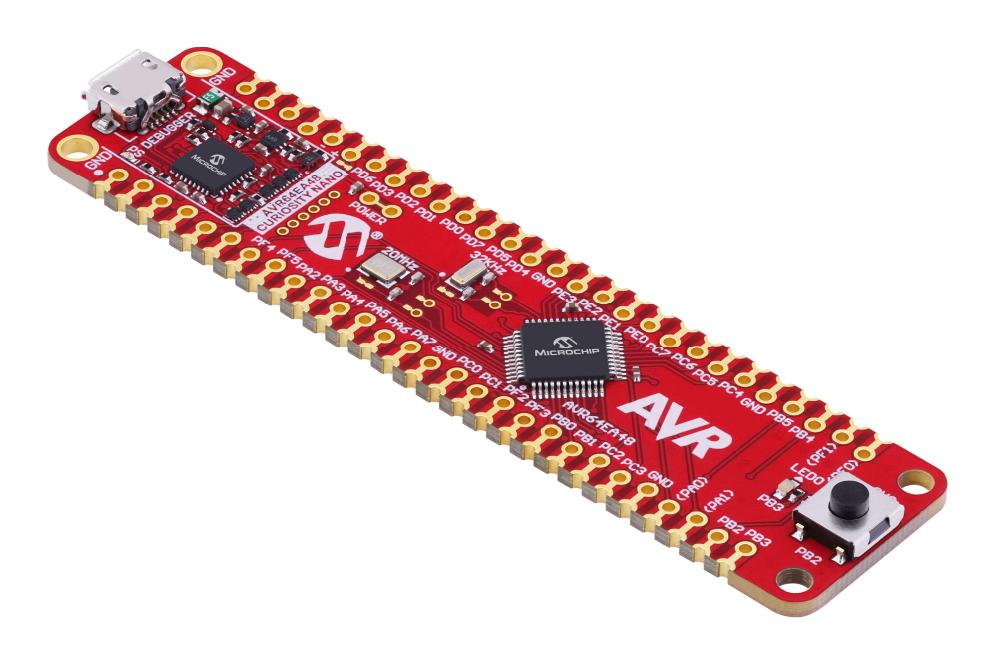

EV66E56A is a AVR64EA48 Curiosity Nano evaluation kit (EV66E56A) is a hardware platform to evaluate the AVR® EA Family microcontrollers. This board has the AVR64EA48 microcontroller (MCU) mounted. Supported by both MPLAB® X IDE and Microchip Studio, the board provides easy access to the features of the AVR64EA48 to explore how to integrate the device into a custom design. The Curiosity Nano series of evaluation boards include an on-board debugger. No external tools are necessary to program and debug the AVR64EA48.
- AVR64EA48 MCU ( 1 yellow LED, 1 mechanical user switch, 32.768KHz crystal, 20MHz crystal)
- On-board debugger (one green power and status LED)
- Programming and debugging, Virtual serial port (CDC) and two debug GPIO channels (DGI GPIO)
- USB powered
- Adjustable target voltage, MIC5353 LDO regulator controlled by the on-board debugger
- 1.8-5.1V output voltage (limited by USB input voltage)
- 500mA maximum output current (limited by ambient temperature and output voltage)
Contents
AVR64EA48 Curiosity Nano evaluation board, Two 100mil 1x28 pin header strips.
Product details
| Silicon Manufacturer: Microchip |
| No. of Bits: 8bit |
| Silicon Family Name: AVR EA |
| Core Architecture: AVR |
| Core Sub-Architecture: - |
| Silicon Core Number: AVR64EA48 |
| Kit Contents: Evaluation Board AVR64EA48 |
| Product Range: - |
Other details
| Brand | MICROCHIP |
| Part Number | EV66E56A |
| Quantity | Each |
| Technical Data Sheet EN |  |
