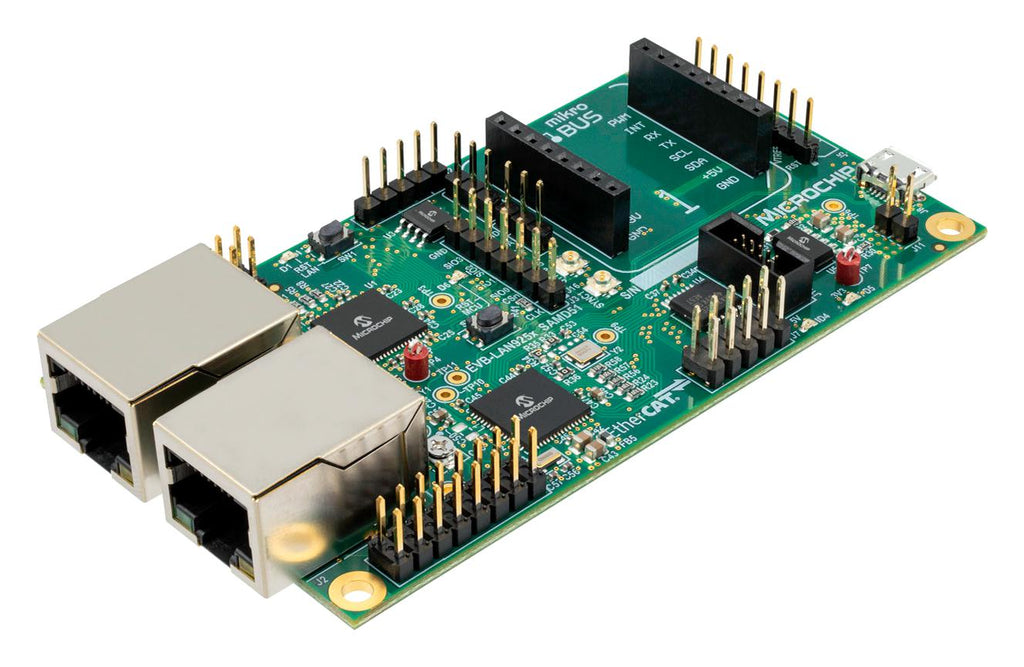

EVB-LAN9253-D51 allows engineers to develop using the LAN9253 ESC together with a Cortex M4F Microcontroller. Peripherals are provided on board with expansion via the popular mikroBUS Click Board� interface. This hardware is fully supported within the Microchip Harmony Framework. A identical board is available that carries LAN9252. Between these two platforms a user can observe pin compatibility and a migration path from LAN9252 towards LAN9253.
- LAN9253 EtherCAT device controller with integrated PHYs
- SAMD51 cortex M4F microcontroller
- EtherCAT Technology Group (ETG) conformance tested
- Supported within the microchip harmony framework
- Dual integrated physical interfaces (EtherCAT IN / EtherCAT OUT)
- 16 GPIO, UART interface
- mikroBUS Click Board� interface
- EtherCAT RUN & EtherCAT ERROR LEDs
- EtherCAT distributed clock, Sync0 & Sync1 signals
Other details
| Brand |
MICROCHIP |
| Part Number |
EV50P30A |
| Quantity |
Each |
| Schematics EN |
 |
| Manufacturer Product Page EN |
|
