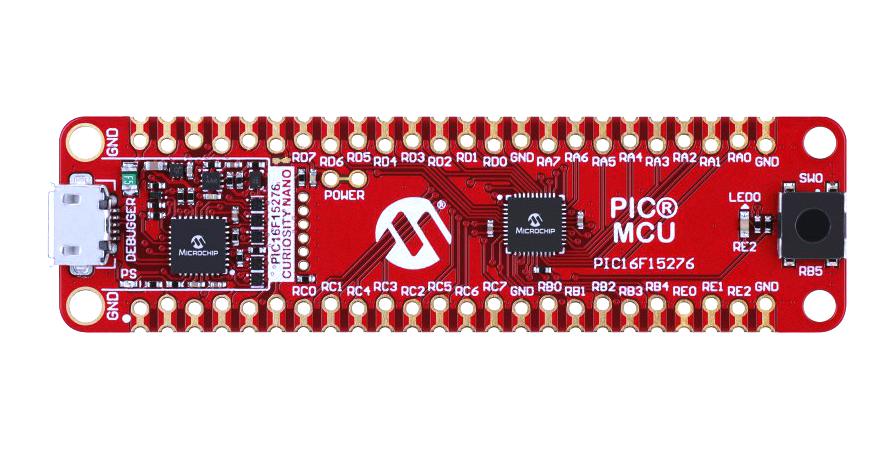

EV35F40A is a PIC16F15276 curiosity nano evaluation kit is a hardware platform to evaluate microcontrollers in the PIC16F152XX family. This board has the PIC16F15276 microcontroller (MCU) mounted. Supported by MPLAB® X IDE, the board provides easy access to the features of the PIC16F15276 to explore how to integrate the device into a custom design. The Curiosity Nano series of evaluation boards include an on-board debugger. No external tools are necessary to program and debug the PIC16F15276.
- PIC16F15276 microcontroller
- One yellow user LED
- One mechanical user switch
- On-board debugger
- USB powered
- MIC5353 LDO regulator controlled by the on-board debugger
- 1.8-5.1V output voltage (limited by USB input voltage)
- 500mA maximum output current (limited by ambient temperature and output voltage)
Contents

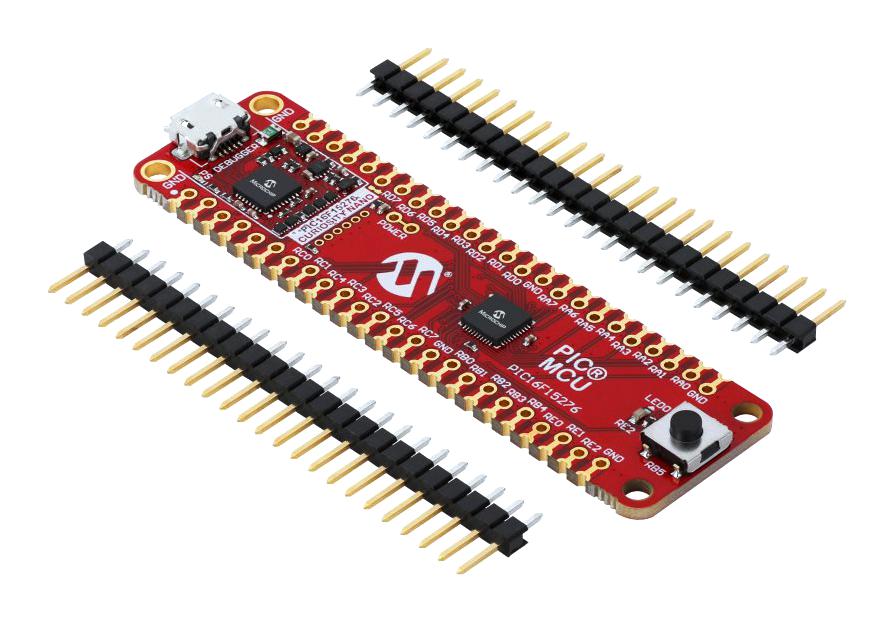

PIC16F15276 Curiosity nano evaluation board, Two 100mil, 1x24 pin header strips.
Product details
| Silicon Manufacturer |
Microchip |
| No. of Bits |
8bit |
| Silicon Family Name |
PIC16F152xx |
| Core Architecture |
PIC |
| Core Sub-Architecture |
PIC16 |
| Silicon Core Number |
PIC16F15276 |
| Kit Contents |
PIC16F15276 Curiosity Nano Evaluation Board, Two 100mil, 1x24 Pin Header Strips |
| Product Range |
- |
Other details
| Brand |
MICROCHIP |
| Part Number |
EV35F40A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
