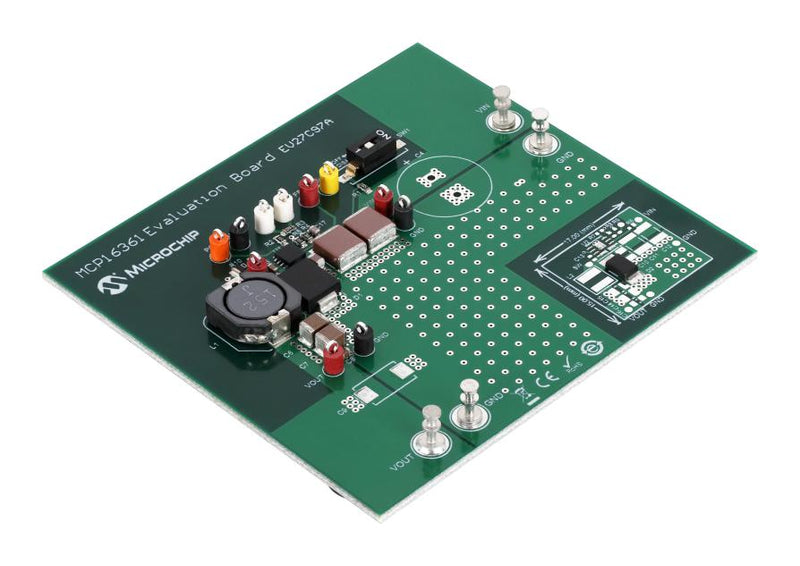

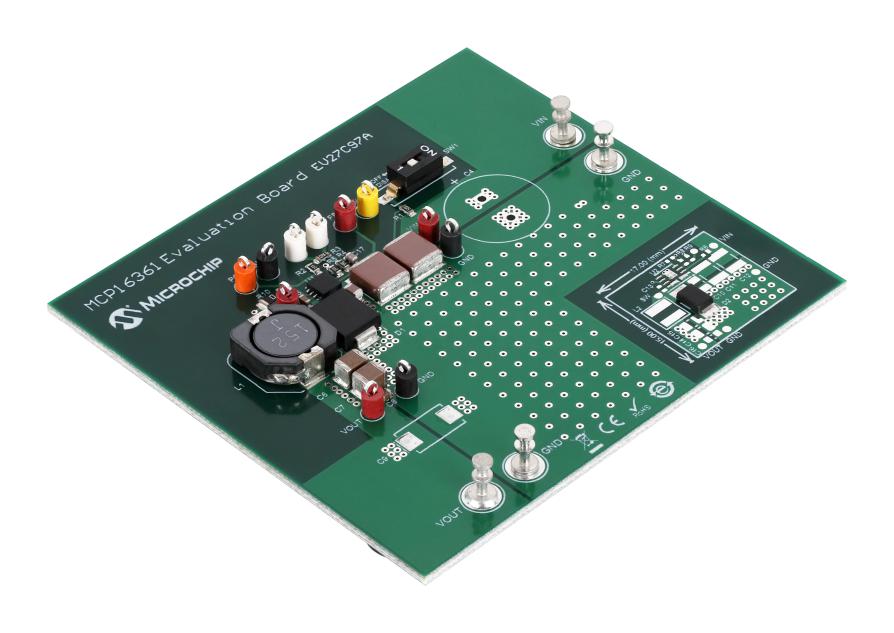

EV27C97A is a MCP16361 evaluation board. MCP16361/2/3 can regulate the output voltage over a wide 2V to 20V range, and typically can deliver over 3A of load current at 3.3V output, when supplied from a 12V input. The maximum input voltage range is 4V to 48V. The regulated voltage (VOUT) should be lower than the input voltage (VIN).
- Input voltage range (VIN) of 4V transient up to 48V
- Output voltage of 3.3V
- Output current is typically, 3A at 3.3V output, 12V input
- Automatic PFM/PWM operation for MCP16361
- PWM switching frequency of 2.2MHz
- Low device shutdown current of 5µA typical and low device quiescent current of 20µA typical
- Integrated N-channel buck switch ON state resistance of 100mohm
- Internal compensation, internal soft start, internal bootstrap diode, internal current limit
- Power good output
- Overtemperature protection (if the die temperature exceeds 155°C, with 25°C hysteresis)
