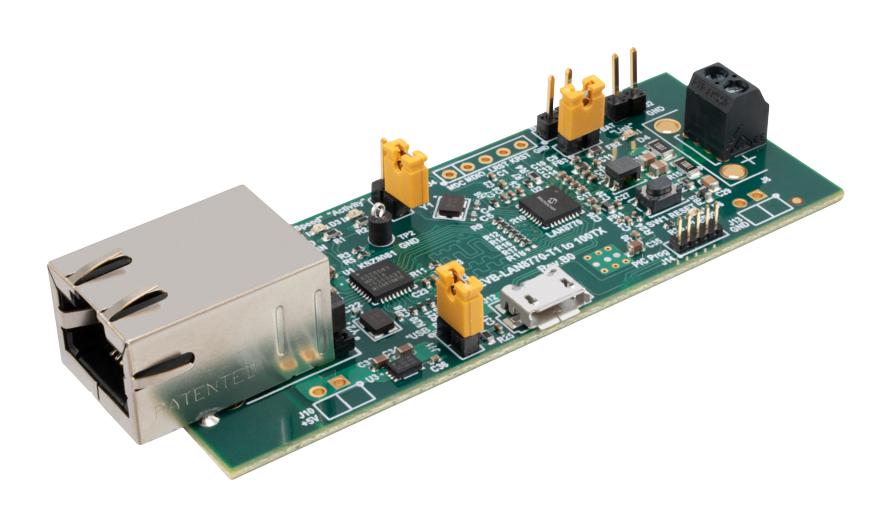

- Media converter evaluation board between 100BASE-TX and 100BASE-T1 Ethernet PHY technology
- 100BASE-TX - 100BASE-T1 Ethernet PHY media converter
- Vdd supply via USB interface
- USB configuration and monitor tool via PIC18LF MCU
- 4-pin Molex 34793-0040 connector for 100BASE-T1 physical interface
- RJ45 connector for 100BASE-TX physical interface
- LED Indicators for speed/link/activity status of both 100BASE-T1 and 100BASE-TX PHYs
Other details
| Brand |
MICROCHIP |
| Part Number |
EV02N47A |
| Quantity |
Each |
| User Manual EN |
 |
