| ₹ 1679.27 includes GST and import duties. | |
| B2B customers can avail ₹ 256.09 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

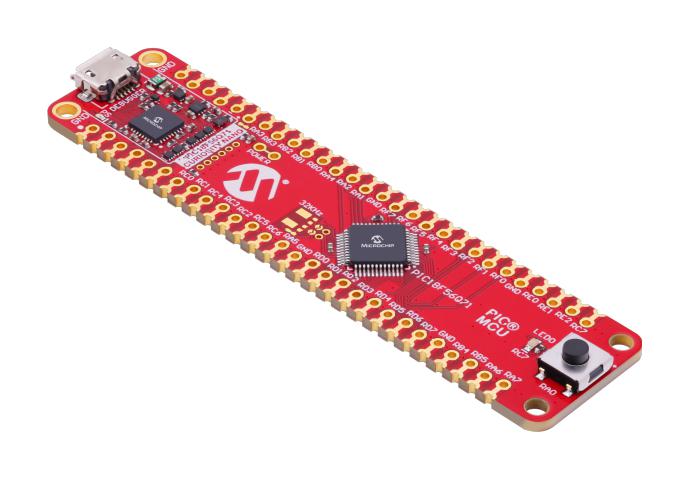

EV01G21A is a PIC18F56Q71 Curiosity NANO evaluation kit. With full programming and debugging capabilities, the PIC18F56Q71 Curiosity Nano Evaluation Kit offers complete support for your next design. With the award-winning MPLAB X integrated development platform and MPLAB Code Configurator (MCC), the kit provides access to the Intelligent analogue and Core Independent Peripherals on the PIC18F56Q71.
- PIC18F56Q71 MCU ( ( 1 yellow LED, 1 mechanical user switch, 32.768KHz crystal)
- On-board debugger (one green power and status LED), board identification in MPLAB® X IDE
- Programming and debugging, Virtual serial port (CDC) and two debug GPIO channels (DGI GPIO)
- USB powered or externally powered
- Adjustable target voltage, MIC5353 LDO regulator controlled by the on-board debugger
- 1.8-5.1V output voltage (limited by USB input voltage)
- 500mA maximum output current (limited by ambient temperature and output voltage)
Contents
PIC18F56Q71 curiosity nano evaluation board, Two 100mil, 1x28 pin header strips.
Product details
| Silicon Manufacturer: Microchip |
| No. of Bits: 8bit |
| Silicon Family Name: PIC18F Q71 |
| Core Architecture: PIC |
| Core Sub-Architecture: PIC18 |
| Silicon Core Number: PIC18F56Q71 |
| Kit Contents: Evaluation Board PIC18F56Q71 |
| Product Range: - |
Other details
| Brand | MICROCHIP |
| Part Number | EV01G21A |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1645.68 |
| 3-5 | ₹ 1628.89 |
| 5-10 | ₹ 1595.31 |
| 10+ | ₹ 1561.72 |
Bulk discount will be automatically applied during checkout based on quantity.
