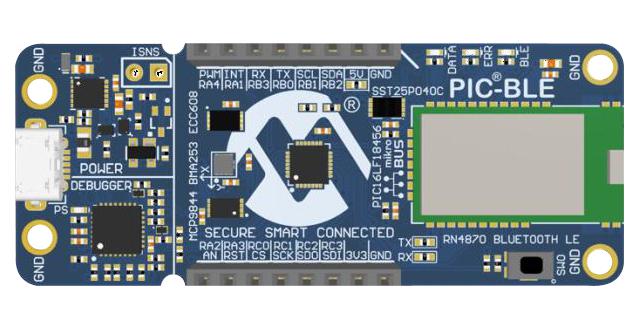

PIC-BLE development board makes wireless applications development quick and easy. It combines an eXtreme Low Power (XLP) PIC16LF18456 microcontroller, an ATECC608A CryptoAuthentication� secure element and the RN4870 Bluetooth Low Energy Module. The board USB interface provides a convenient serial port (virtual UART), the simplicity of drag and drop programming, but also full programmer and debugger capabilities supported by an award-winning Integrated Development Environment (IDE) - Microchip MPLAB® X IDE.
- BMA253 acceleration sensor
- MCP9844 temperature sensor
- SST25PF040CT 4Mb serial flash
- mikroBUS header, connect 700+ sensors and actuators
- Two user LEDs
- Push button
- On-board USB interface
- USB and battery powered (CR2032)
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MICROCHIP |
| Part Number |
DT100112 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
