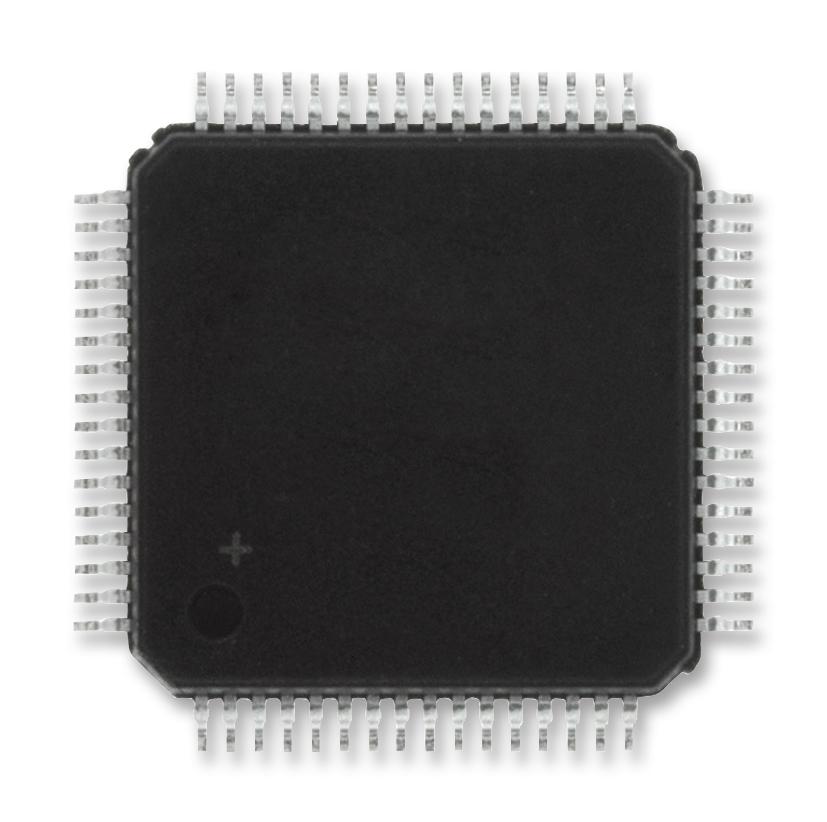

Microchip DSPIC33EV256GM106-I/PT DSPIC33EV256GM106-I/PT Digital Signal Controller dsPIC33EV 70 MHz 256 KB 53 I/O's CAN I2C SPI Uart 1.8 V

The DSPIC33EV256GM106-I/PT is a Digital Signal Controller (DSCs) features a 5V 70MIPS dsPIC® DSC core with an enhanced on-chip features and is ideal for operating in harsh environments. The 5V dsPIC33EV family comes with rich peripheral integration which includes CAN, SENT, high speed PWMs, operational amplifier and error correcting code flash for increased reliability and safety. The dsPIC33EV family of devices enable the design of high-performance, precision motor control systems that are more energy efficient. They can be used to control BLDC, permanent magnet synchronous, AC induction and stepper motors. This device is ideal for automotive applications and high-performance general purpose applications.

• Code-efficient (C and assembly) architecture
• Two 40-bit wide accumulators
• Single-cycle (MAC/MPY) with dual data fetch
• Single-cycle, mixed-sign MUL plus hardware divide
• High-speed PWM - up to six pulse-width modulation (PWM) outputs (three generators)
• ADC module configurable as 10-bit, 1.1MSPS with four S&H or 12-bit, 500kSPS with one S&H
• Timers/output compare/input capture
• Communication interface - one I²Câ�¢ module (up to 1Mbaud) with SMBus support
• 4-channel DMA with user-selectable priority arbitration
• Class B fault handling support - Backup FRC, windowed WDT uses LPRC

Applications

Industrial, Power Management, Motor Drive & Control

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	DSPIC33EV256GM106-I/PT
Quantity	Each
Technical Data Sheet EN
Technical Data Sheet EN
Product Change Notice EN
